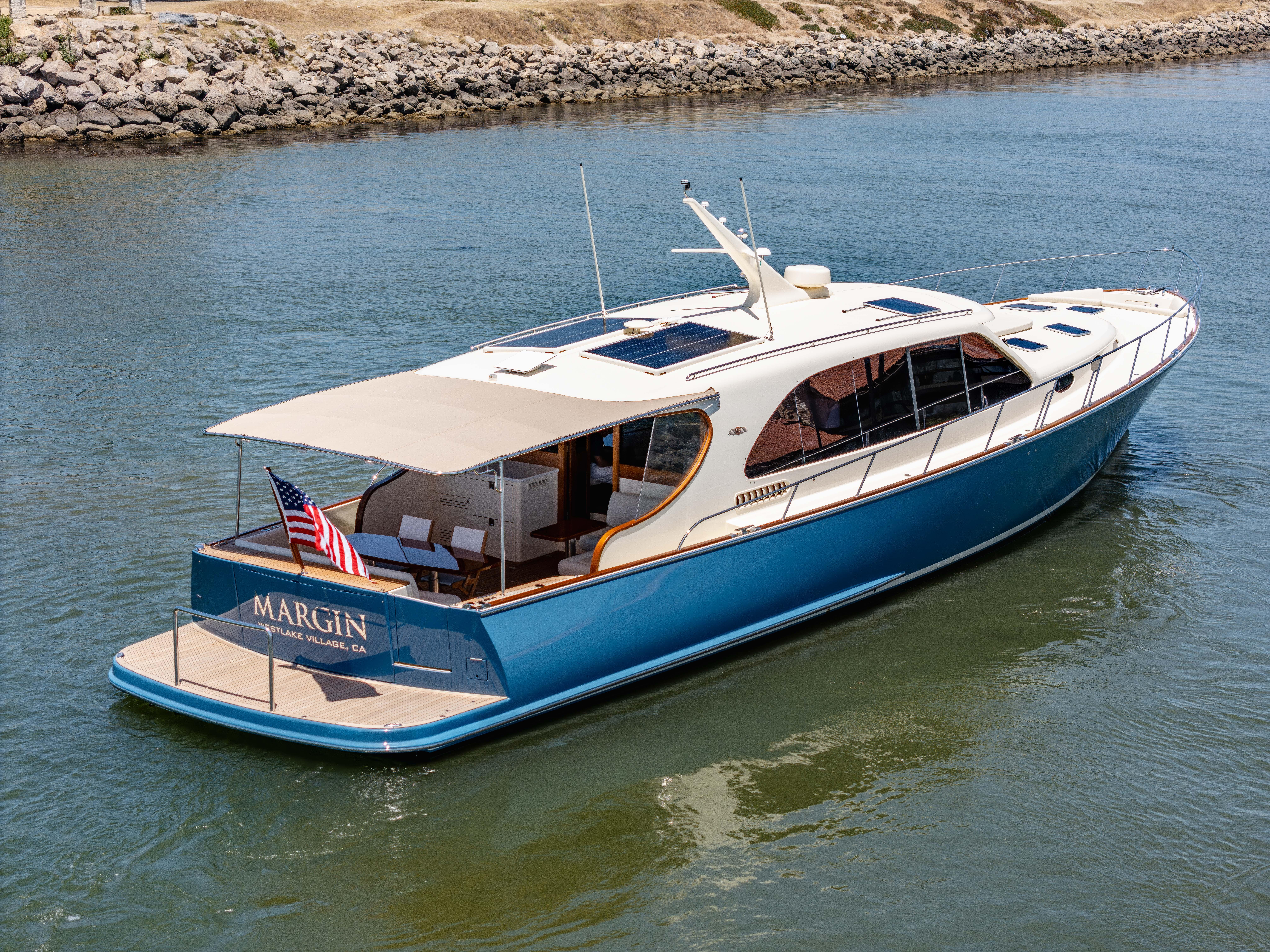

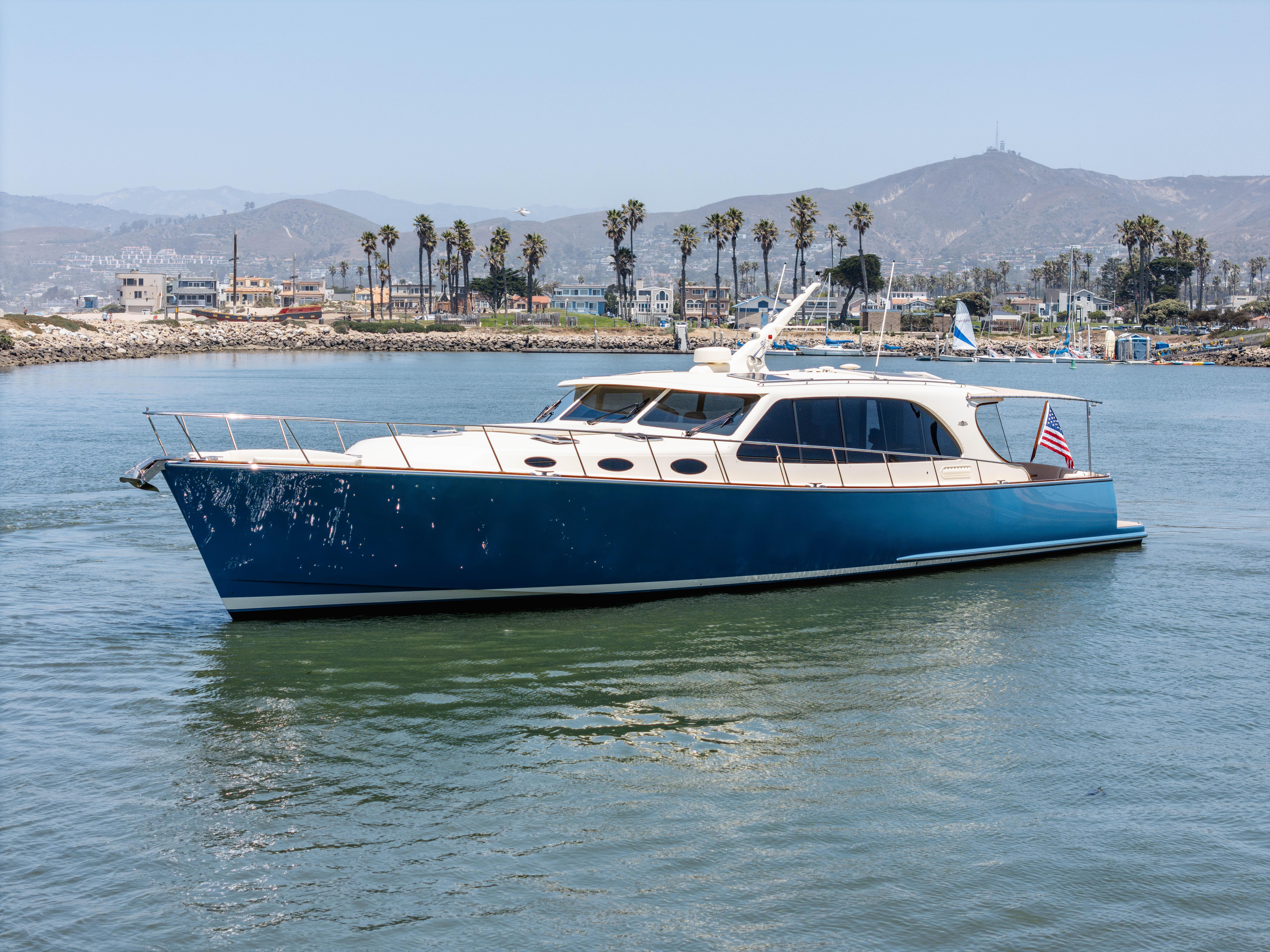

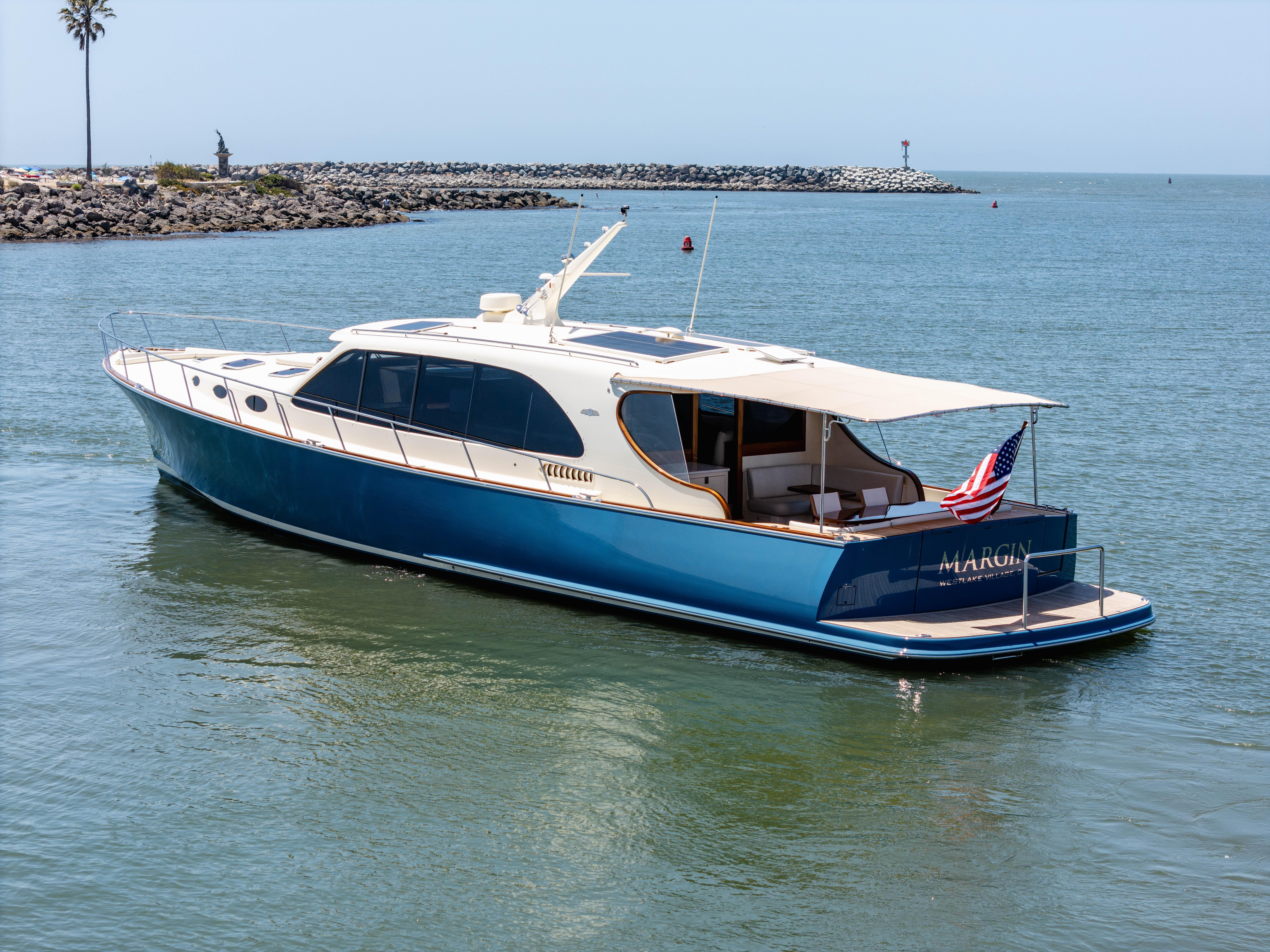

2025 Palm Beach Motor Yachts PB70 | Margin

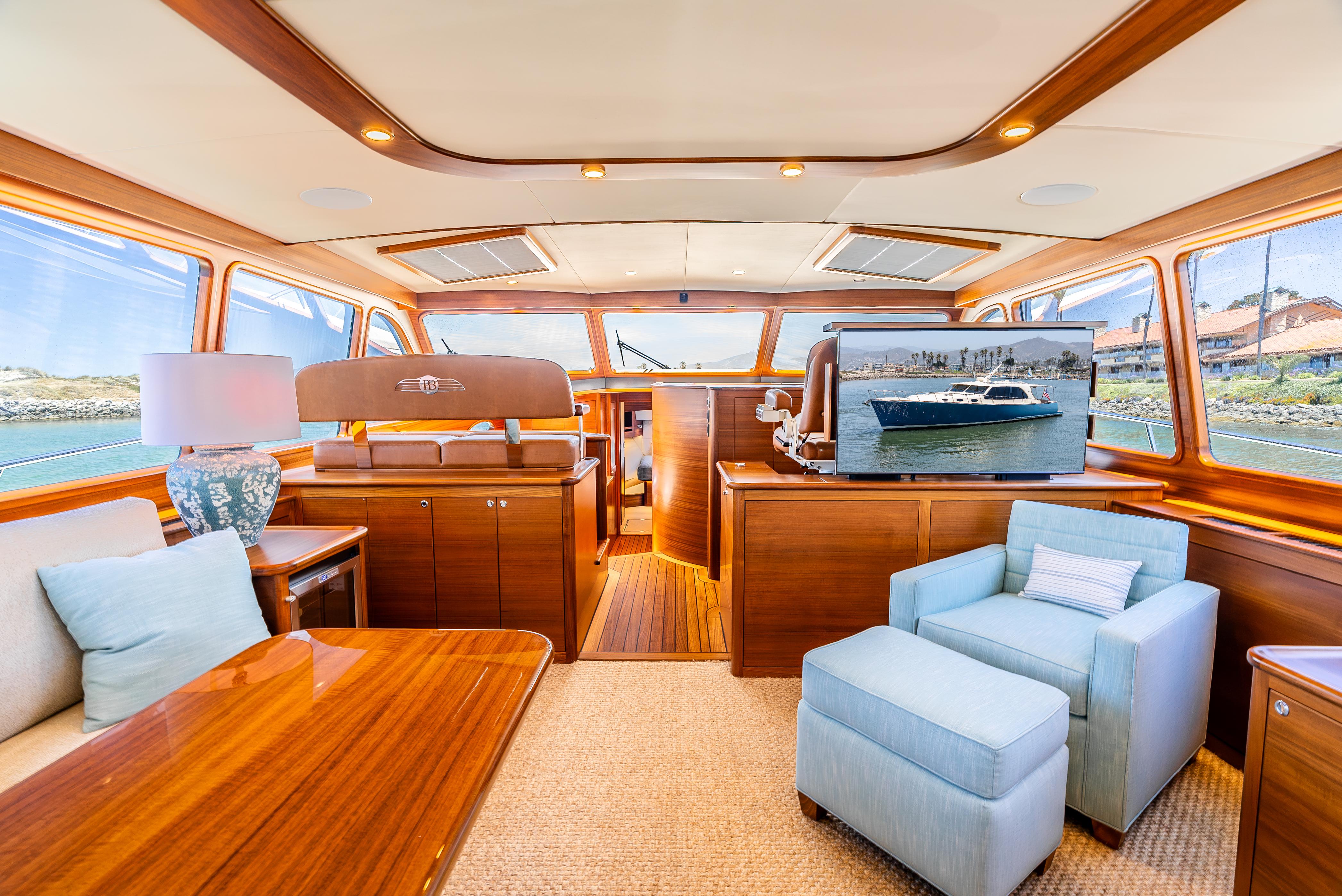

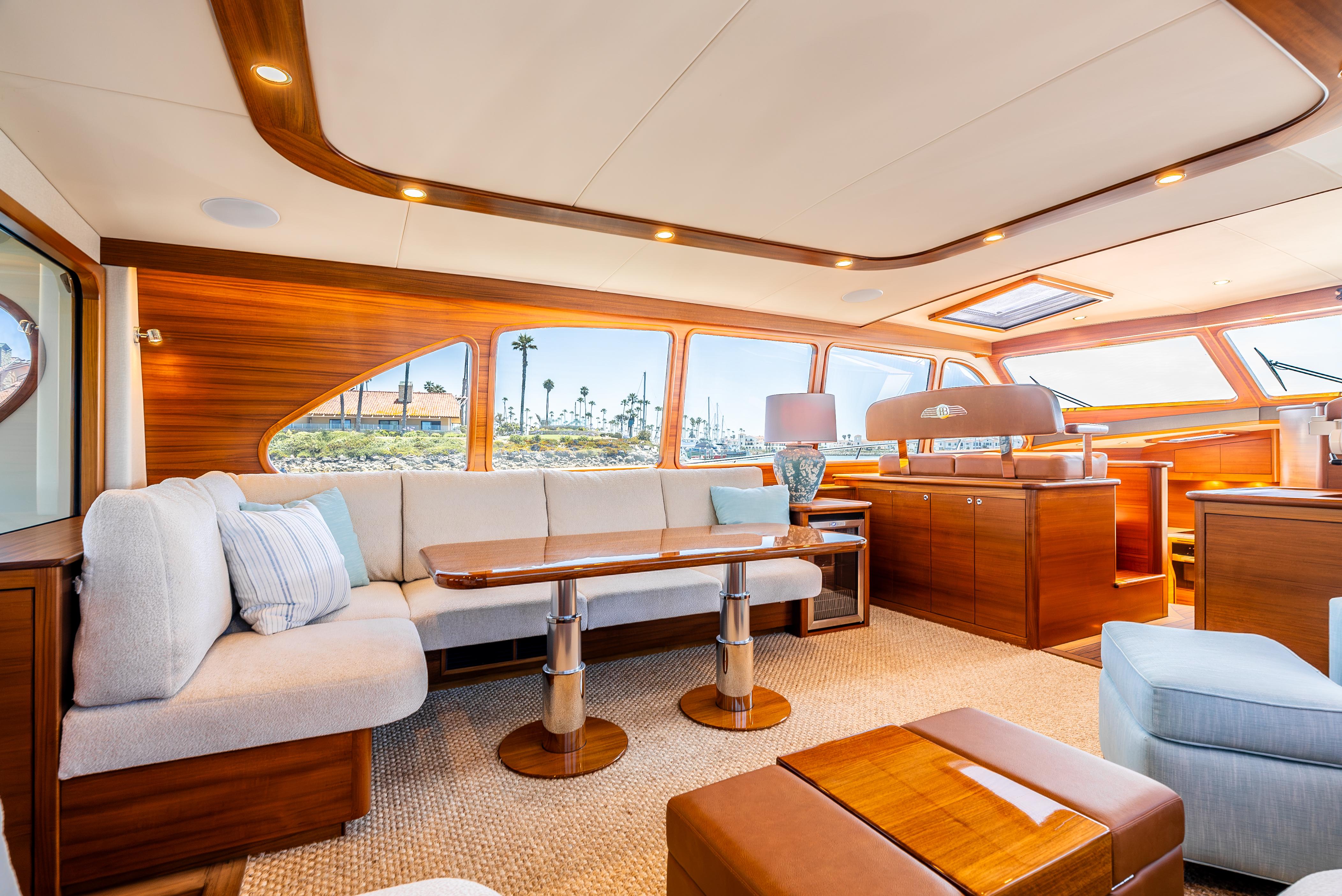

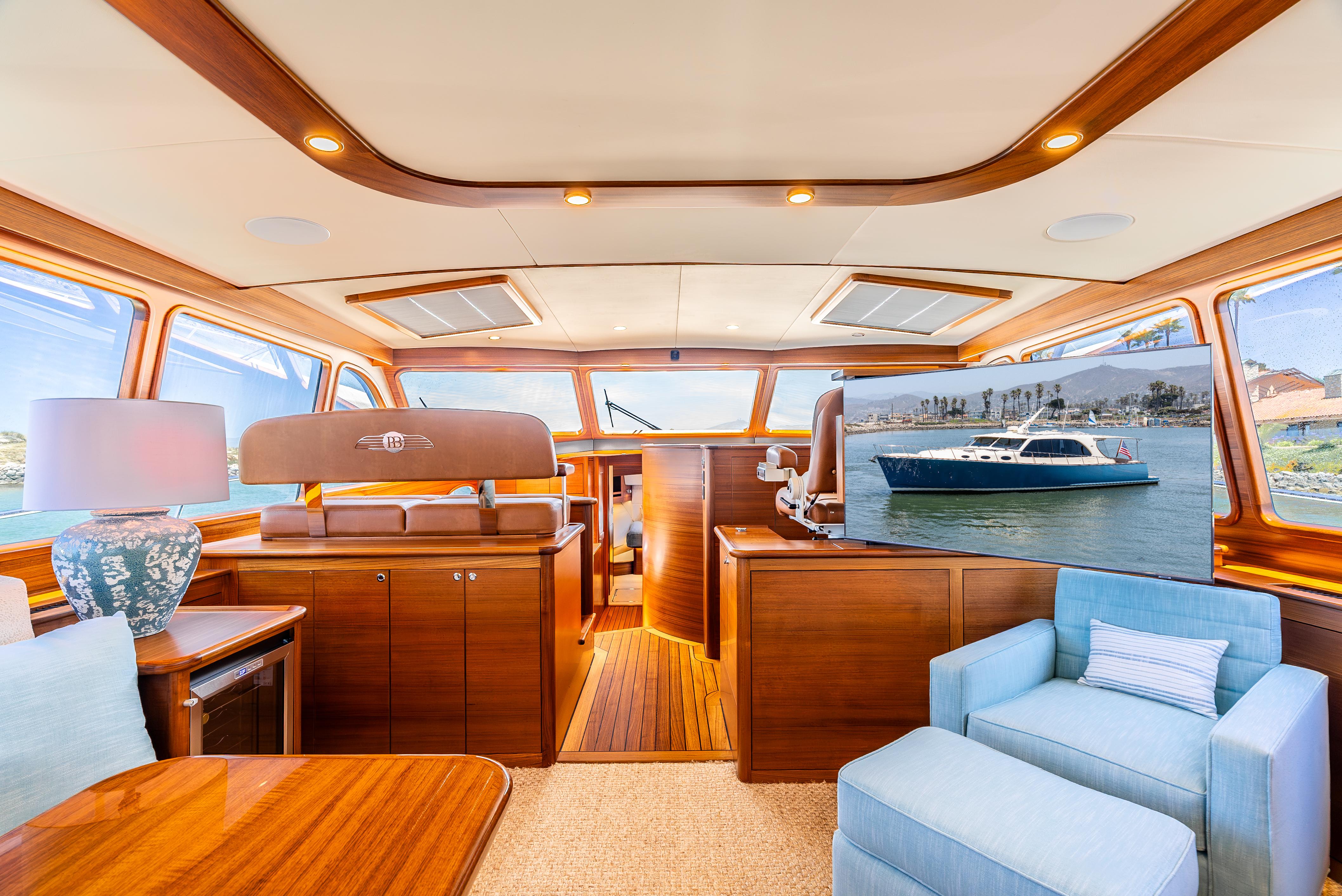

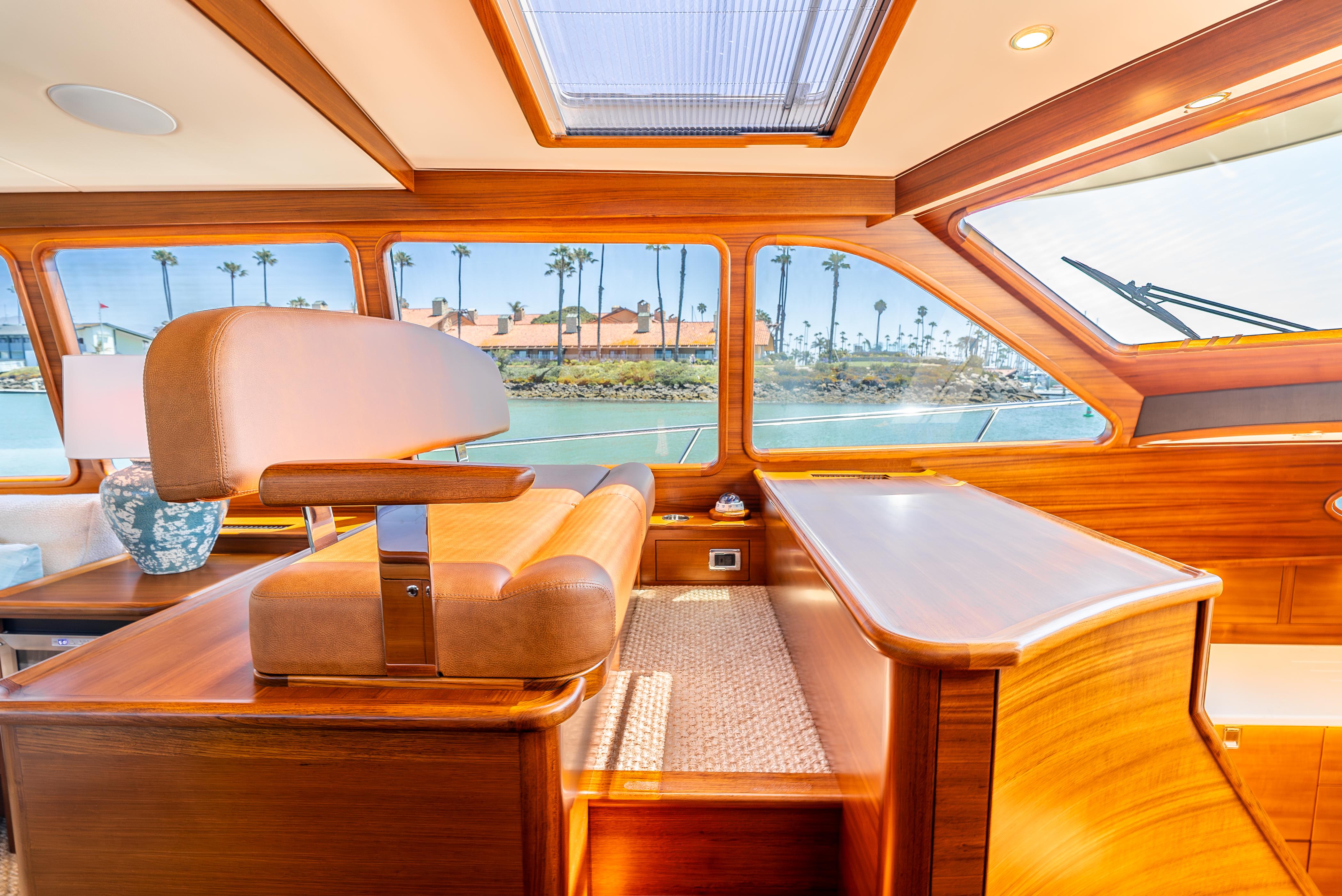

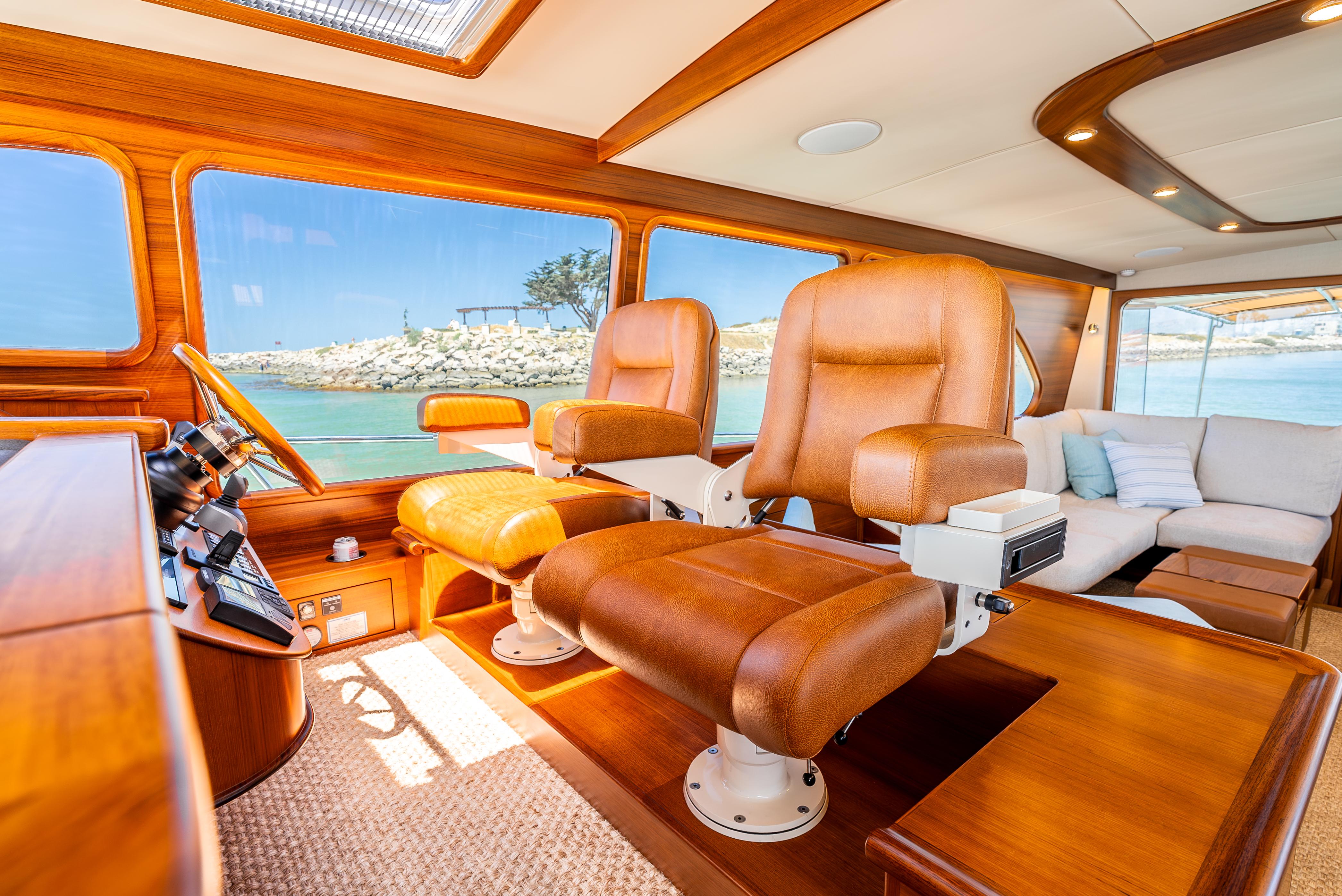

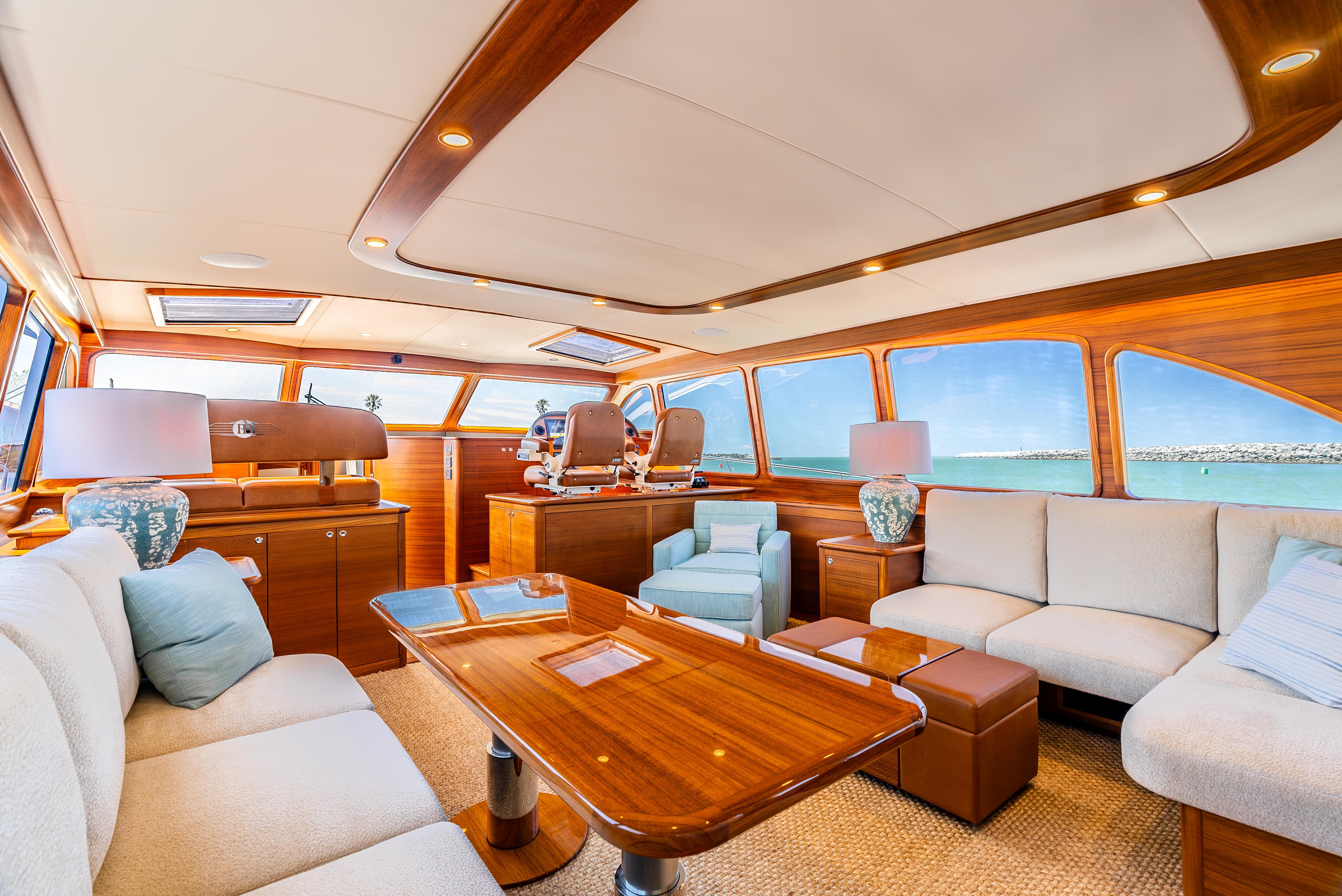

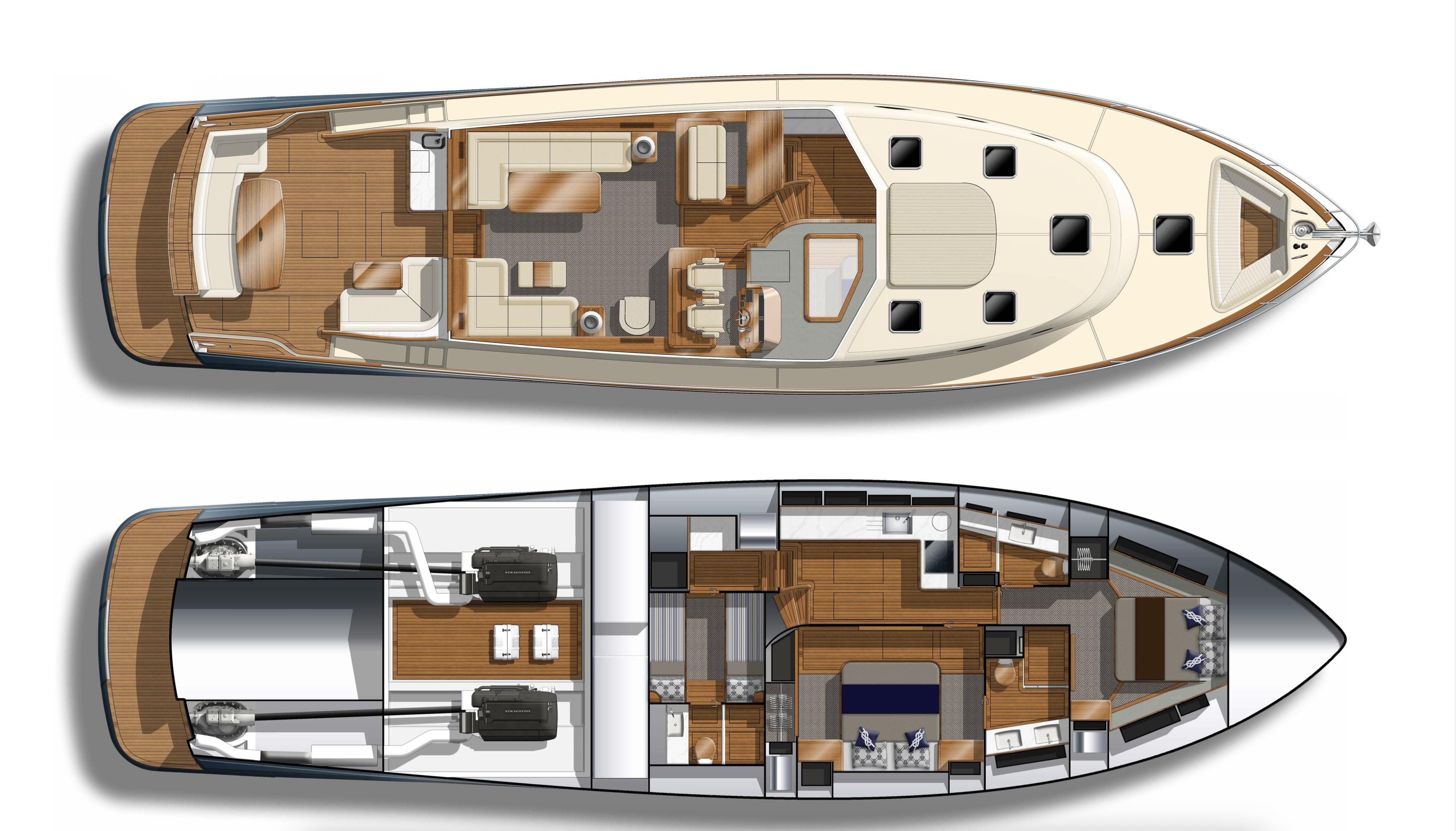

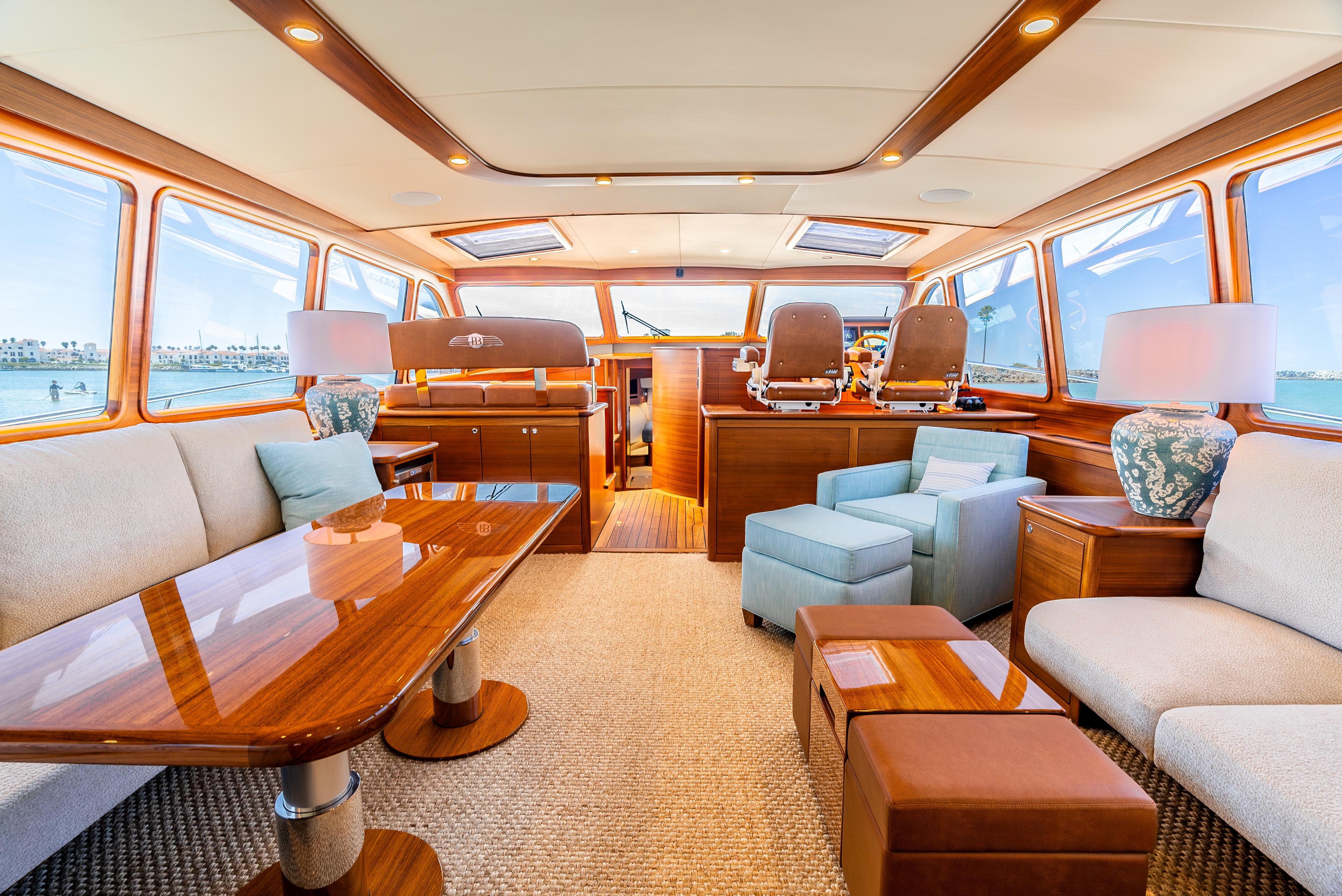

MAIN DECK - Port aft L-settee with hi-lo table fwd end cabinet, Port navigator STIDD Helmseat, Stbd aft custom L-settee forward end cabinet, custom ottoman,  barrel chair and Stbd STIDD Helmseat

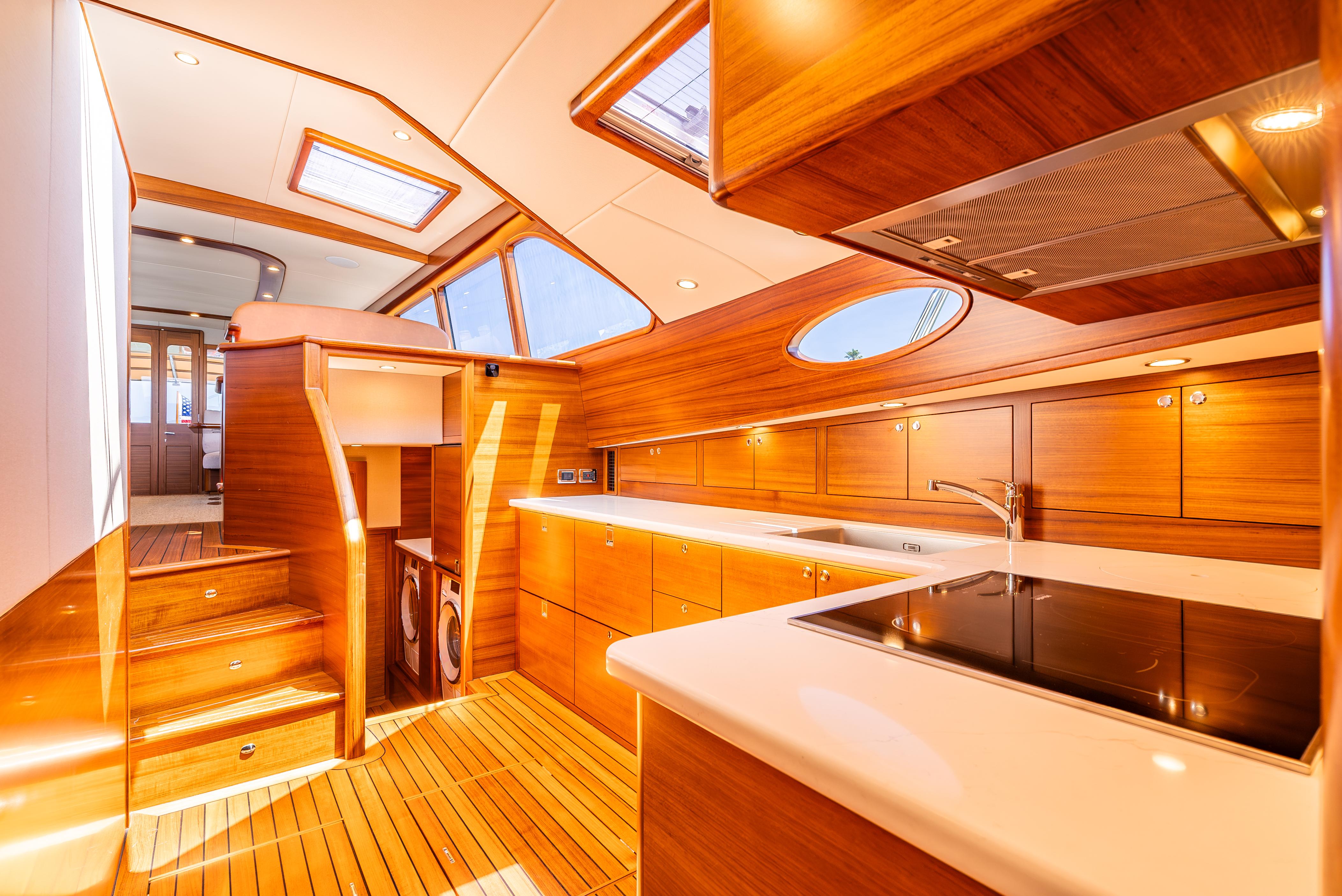

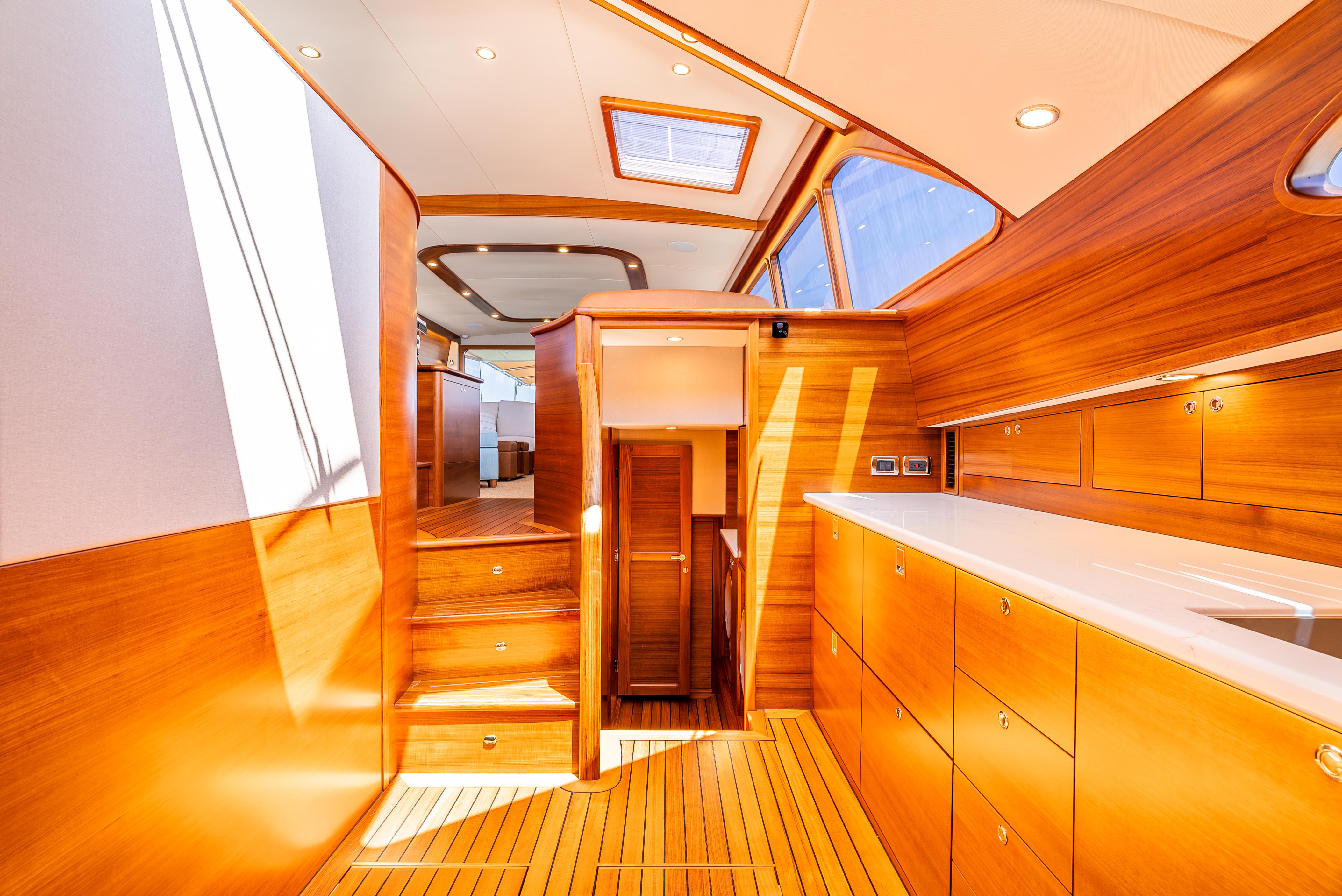

 LOWER DECK - Port L-shaped galley, Two staterooms plus crew cabin and utility room -  Stbd midship master, Fwd VIP/Guest with port day head and  Aft crew Crew/Guest cabin with integrated head/shower

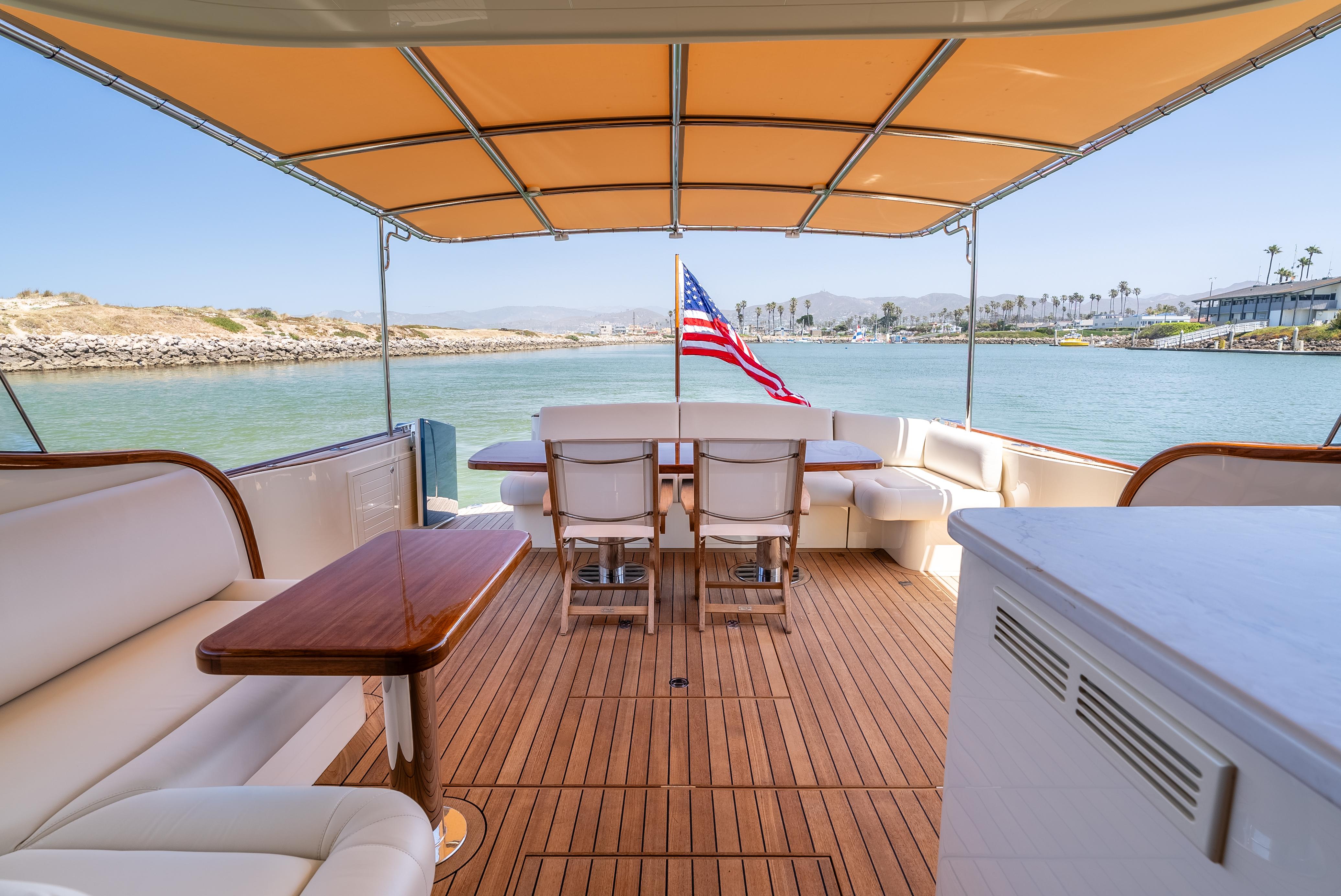

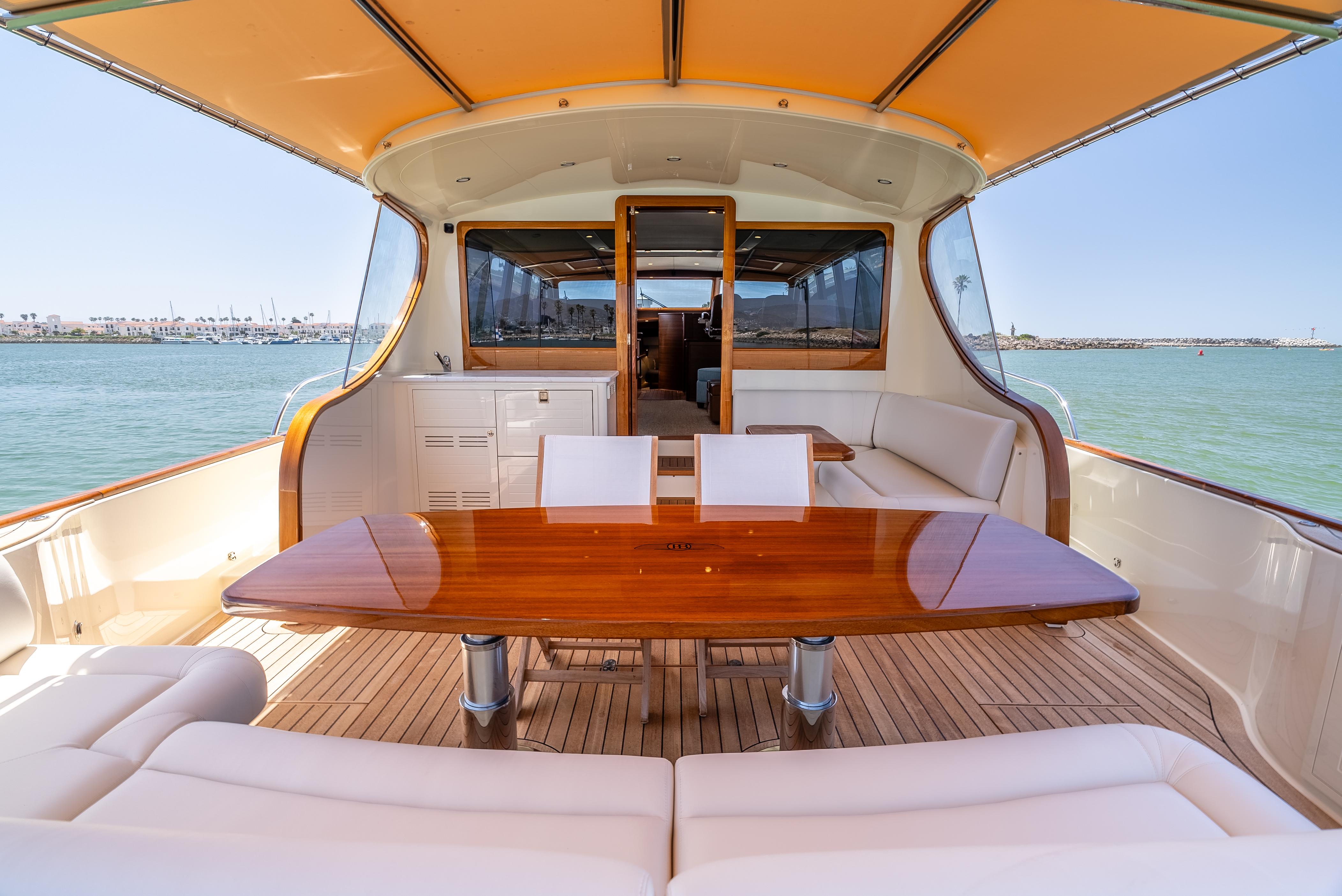

COCKPIT - Port Cockpit locker with custom outboard sink, Stbd aft-facing L-shaped settee and  table and Aft transome L-Settee withHi-Low Table

Hull is vacuum-infused E-Glass with carbon fibre in structural areas, cored with Corcell® and Airex® foam, stitched multi-axial fabric, and vinylester resins.

The deck and superstructure are fully- infused carbon fibre

 All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity

All exterior fittings are 316 marine-grade stainless steel

Epoxy primer with 2 coats of high-quality marine antifouling (sprayed application)

Propspeed foul release coating on all running gear

Burmese teak interior

Watertight collision bulkhead located in the bow

Hull is vacuum-infused E-Glass with carbon fibre in structural areas, cored with Corcell® and Airex® foam, stitched multi-axial fabric, and vinylester resins. The deck and superstructure are fully-infused carbon fibre• All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity• All exterior fittings are 316 marine-grade stainless steel• Epoxy primer with 2 coats of high-quality marine antifouling (sprayed application)• Propspeed foul release coating on all running gear• Enclosed hardtop – infused carbon fibre with electric sliding windows (port, starboard and aft) using toughened glass• Burmese teak interior• Deck color: Palm Beach Cream (standard)• Watertight collision bulkhead located in the bow• Water tank: polyethylene, food-grade, 1,200 L/317 gal• Fuel tank: full beam FRP tank, 6,000 L/1,585 gal• Holding tank: polyethylene, black water 400 L/105 gal
Hull is vacuum-infused E-Glass with carbon fibre in structural areas, cored with Corcell® and Airex® foam, stitched multi-axial fabric, and vinylester resins. The deck and superstructure are fully-infused carbon fibre• All bulkheads and fixed furniture are structurally bonded to the hull and deck for superior strength and rigidity• All exterior fittings are 316 marine-grade stainless steel• Epoxy primer with 2 coats of high-quality marine antifouling (sprayed application)• Propspeed foul release coating on all running gear• Enclosed hardtop – infused carbon fibre with electric sliding windows (port, starboard and aft) using toughened glass• Burmese teak interior• Deck color: Palm Beach Cream (standard)• Watertight collision bulkhead located in the bow• Water tank: polyethylene, food-grade, 1,200 L/317 gal• Fuel tank: full beam FRP tank, 6,000 L/1,585 gal• Holding tank: polyethylene, black water 400 L/105 gal

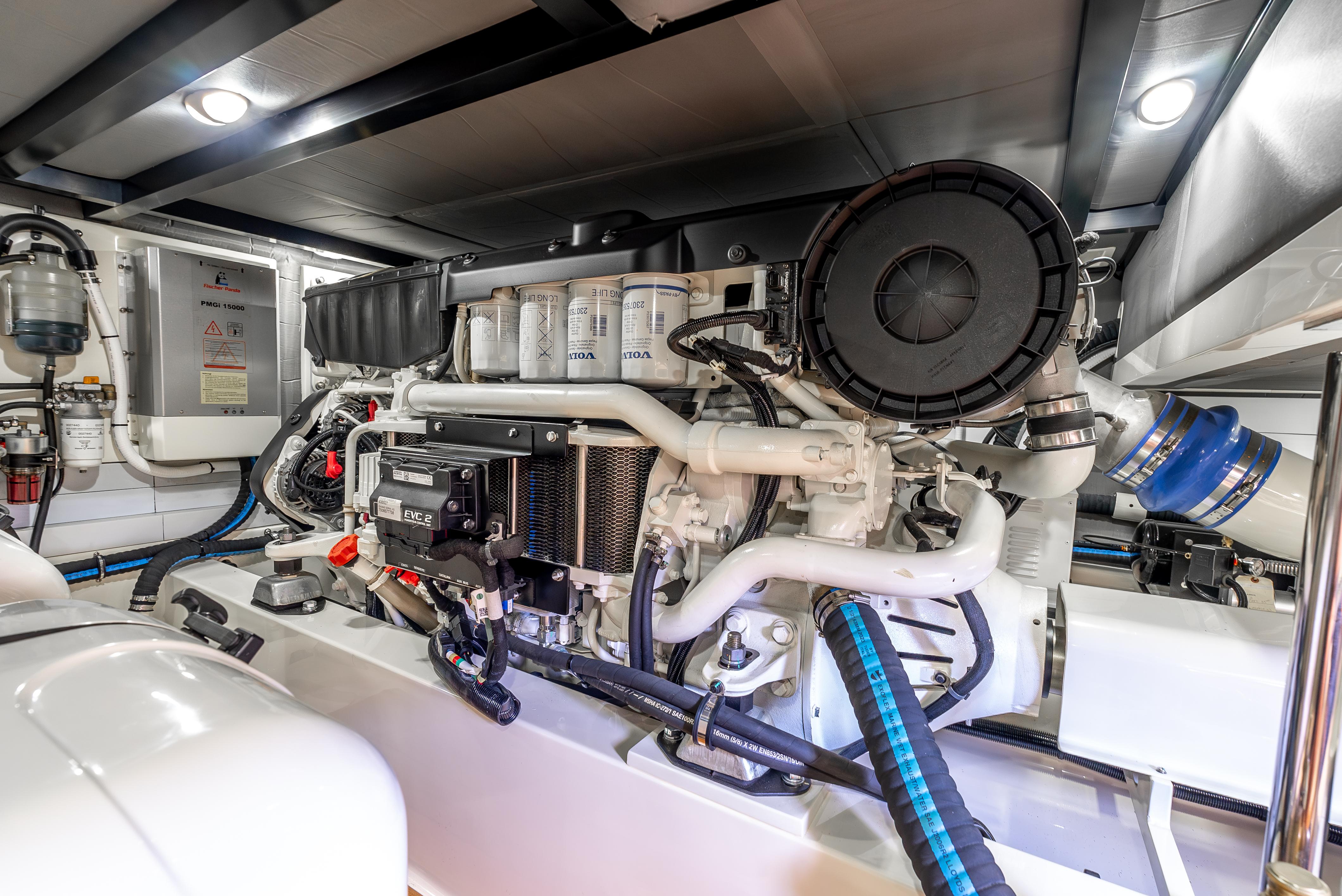

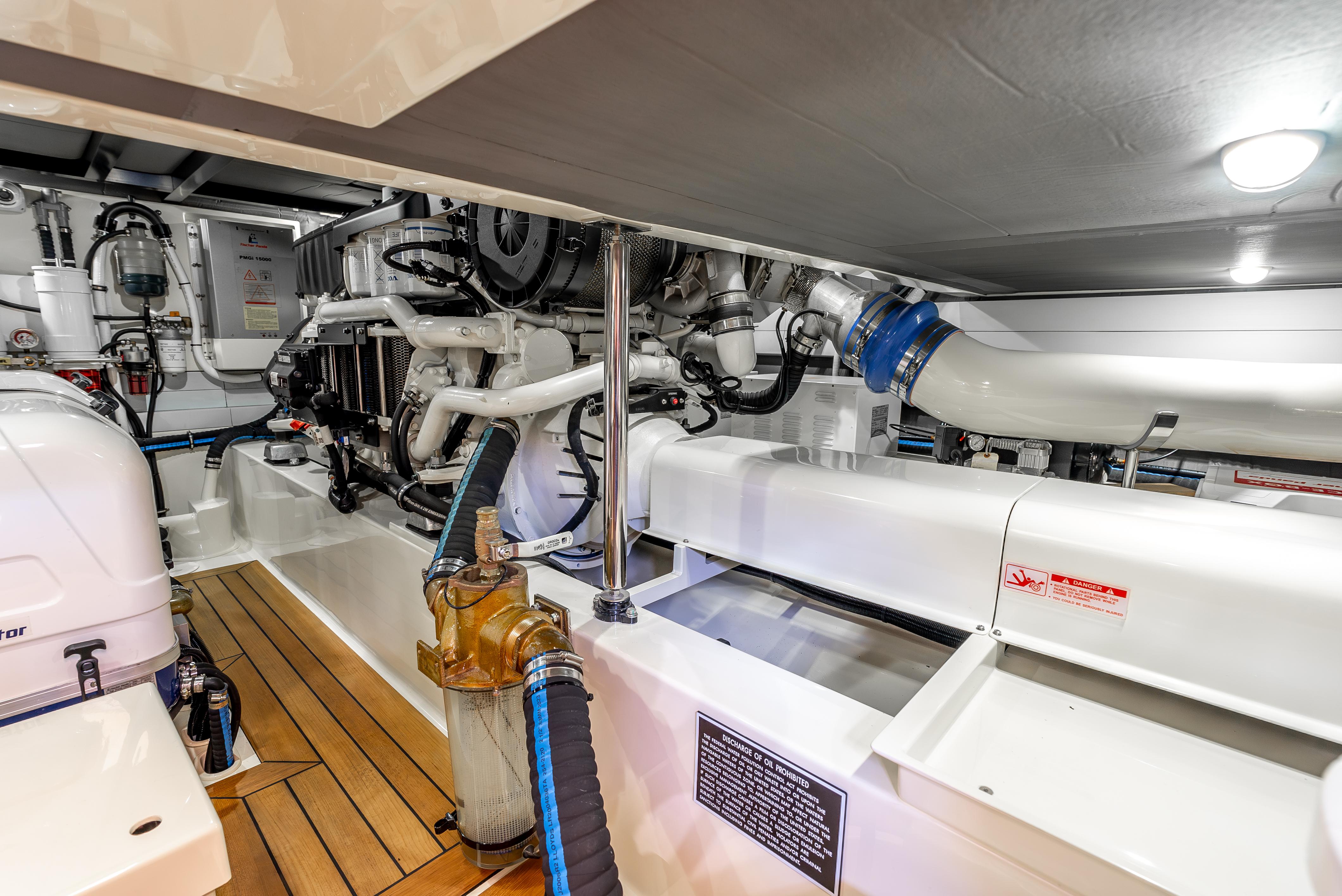

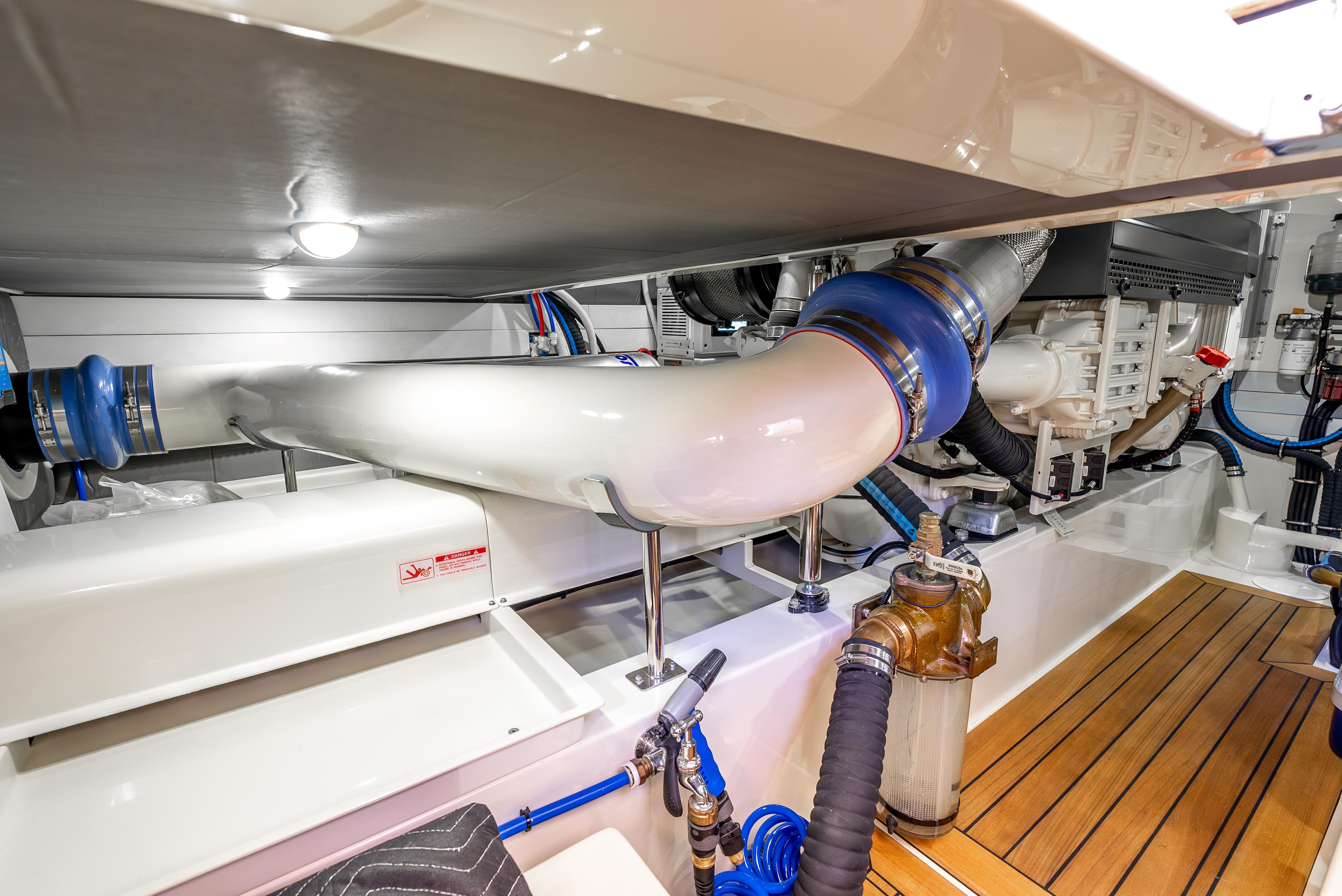

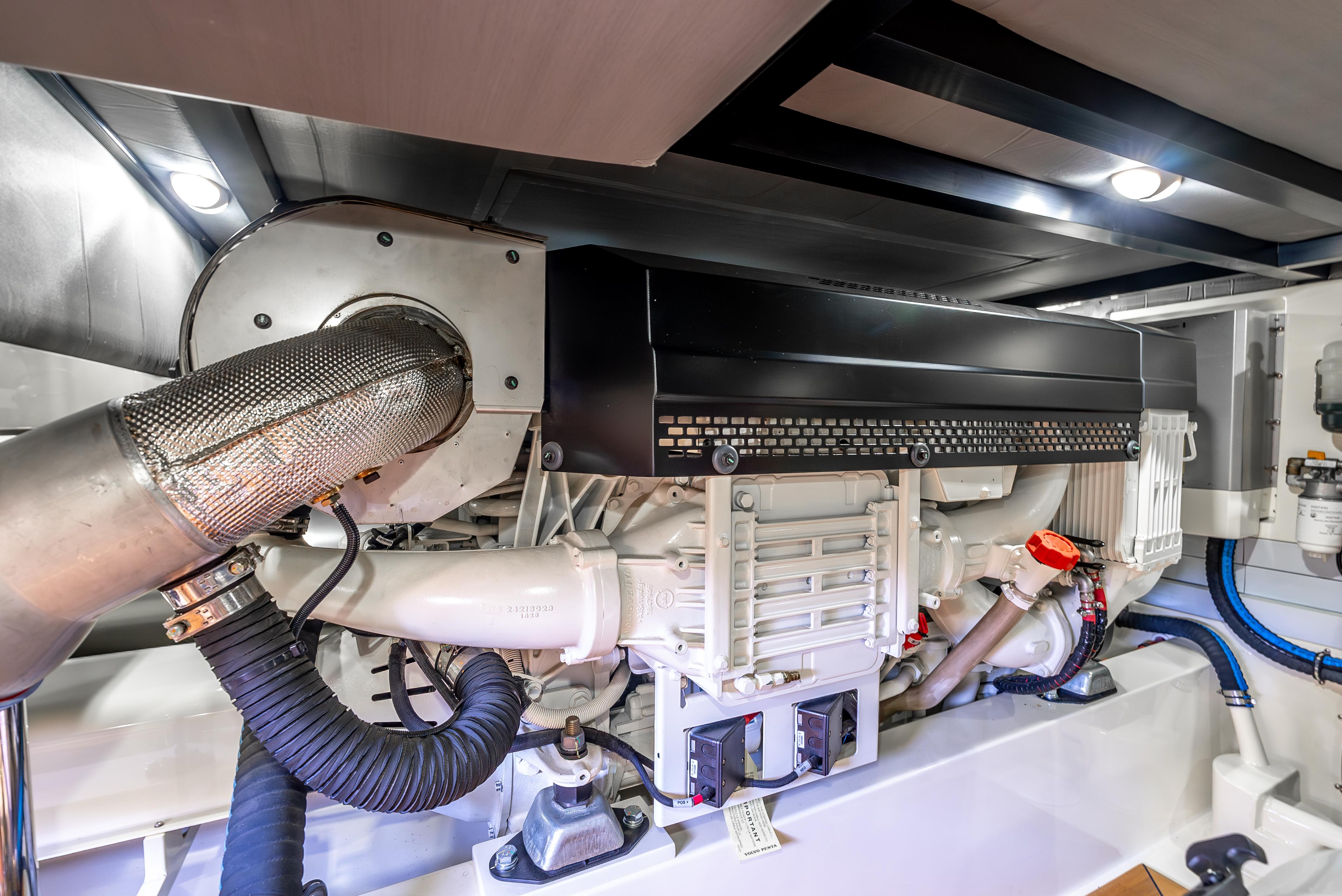

Twin VOLVO IPS 1350 @ 1000 HP- w/ 50 hours UPGRADE

VOLVO

Anti-vibration mounts on engine supports

Acoustic engine sound shield

 Volvo Dynamic Positioning System

 Fuel tank, full-beam integral composite with gauge at helm

Fuel shut off valves

Dual Racor fuel/water separator

Internal seawater strainers for main engines, generators and air conditioning intakes

Sea-Fire fire suppression system

Composite skin fittings and ball valves double clamped on all through-hull

fittings on or below the waterline

 Pressurized freshwater system, 24V, hot/cold

 Holding tank with dockside pump-out, equipped with direct discharge pump

 Freshwater sanitation system, 24V toilet

Oil change system

SLEIPNER SIDEPOWER Bow thruster

MUIR VR3500 Electric Windlass

90m cromox SS chain , 20 m rode

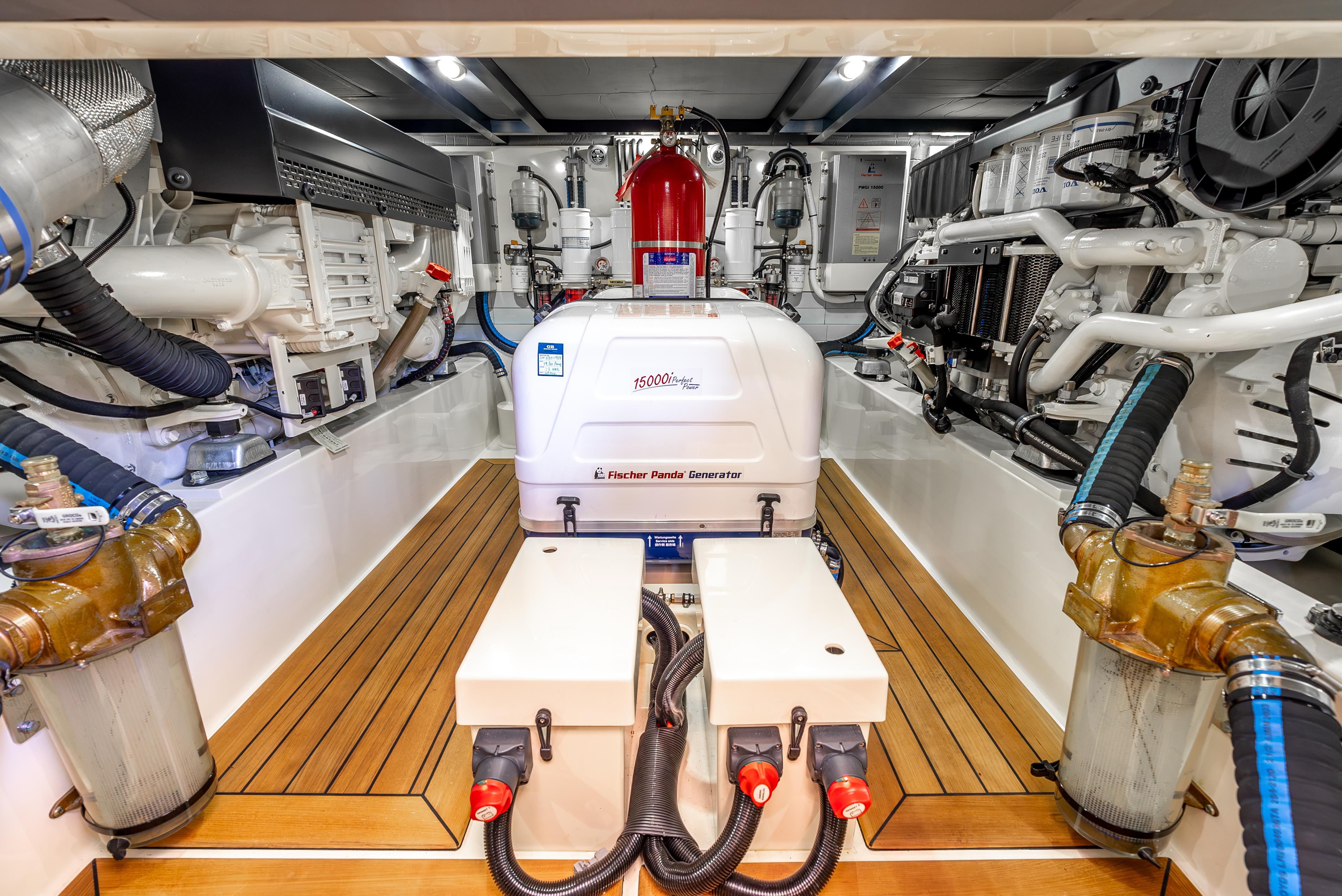

Fischer Panda Generator 2 x 15,000i ( 15hrs / 20hrs ) installed with gas/water separator

  2 x 50amp cablemaster with ASEA iso-boost isoltaion  transformer,

Custom 24V and 240V/110V distribution panels with amp and voltmeters

 Lithium batteries throughout including house, start, genset and thruster

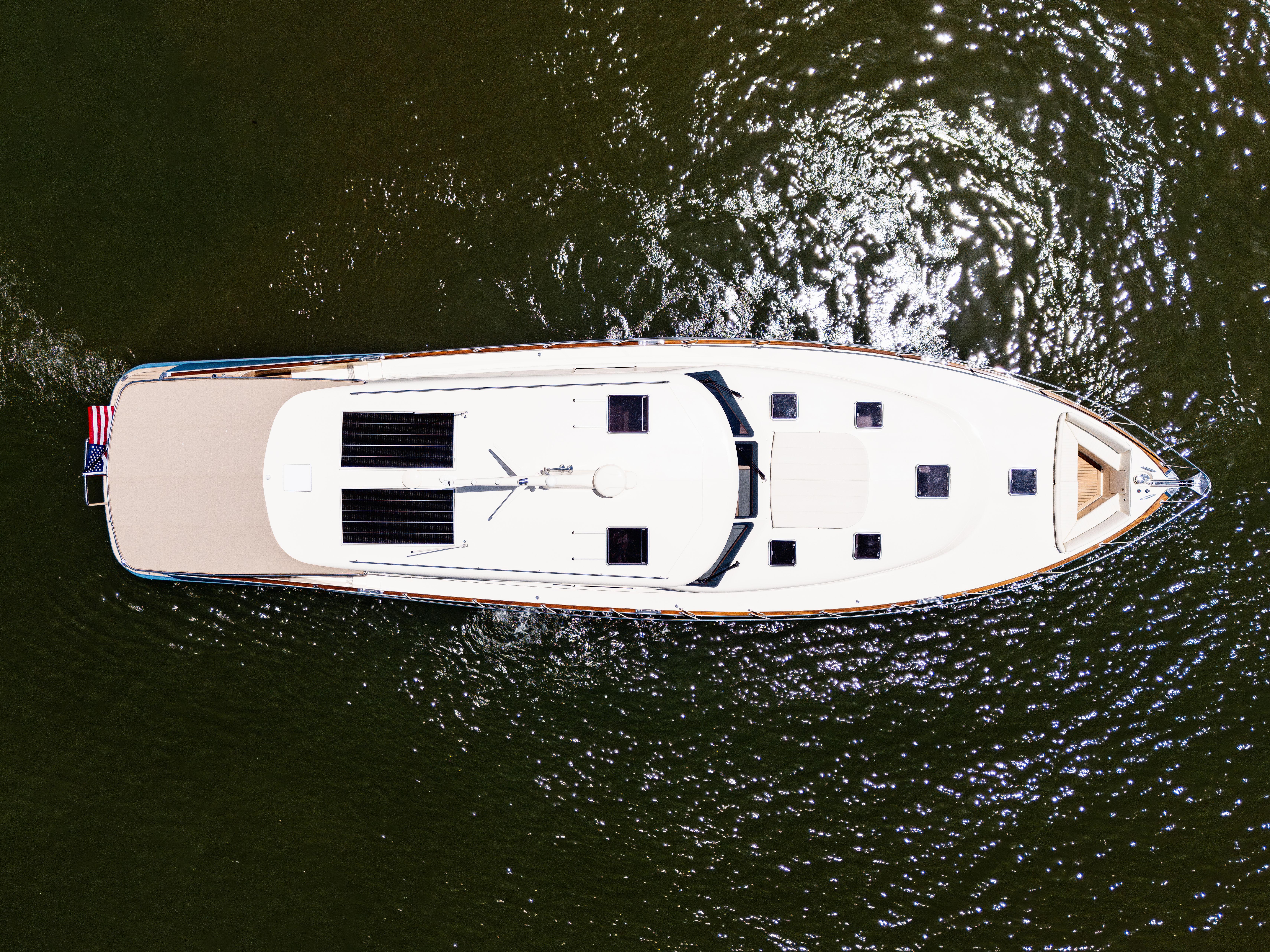

(2) 500 Watt Sunpower Solar Panels

Electronic battery isolation switches

Battery paralleling system for emergency start

Victron inverter/charger: 24VDC (integrated into the AC system for use of

selected AC equipment without the need to run the generator)

 DOMETIC A/C (2) 27k BTU (1)18K BTU (1) 10k BTU

 Stainless steel water heater: 75 L, fitted

 Vimar outlets and light switches with Rondò chrome plates

Trim tabs: DC, Humphree interceptor with auto list correction function

LED lighting used throughout

Marine-grade cabling throughout

KAHLENBERG 24v dula trumpet stainless steel horn

Engine monitors including instrumentation, alarms and hour meters

LED navigational lights Premium quality tinned stranded copper wiring

Painted hull - Awlgrip Petrol  Blue

 Stainless steel anchor, 35 kg Ultra, with 90 m of chain and 20 m of rope

 Electric anchor windlass with remote at helm

 Bow roller, stainless steel and self-launching

Large anchor locker

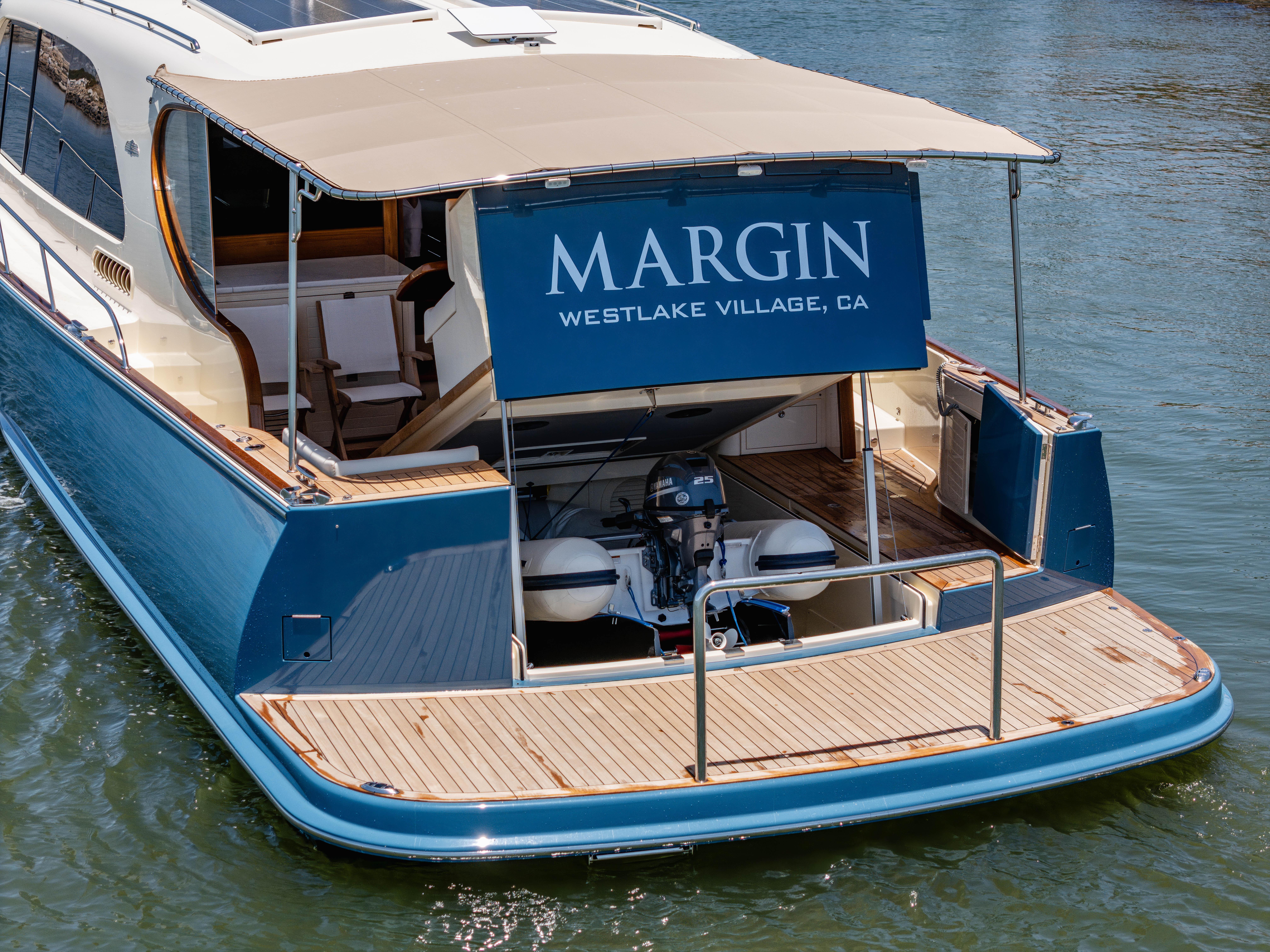

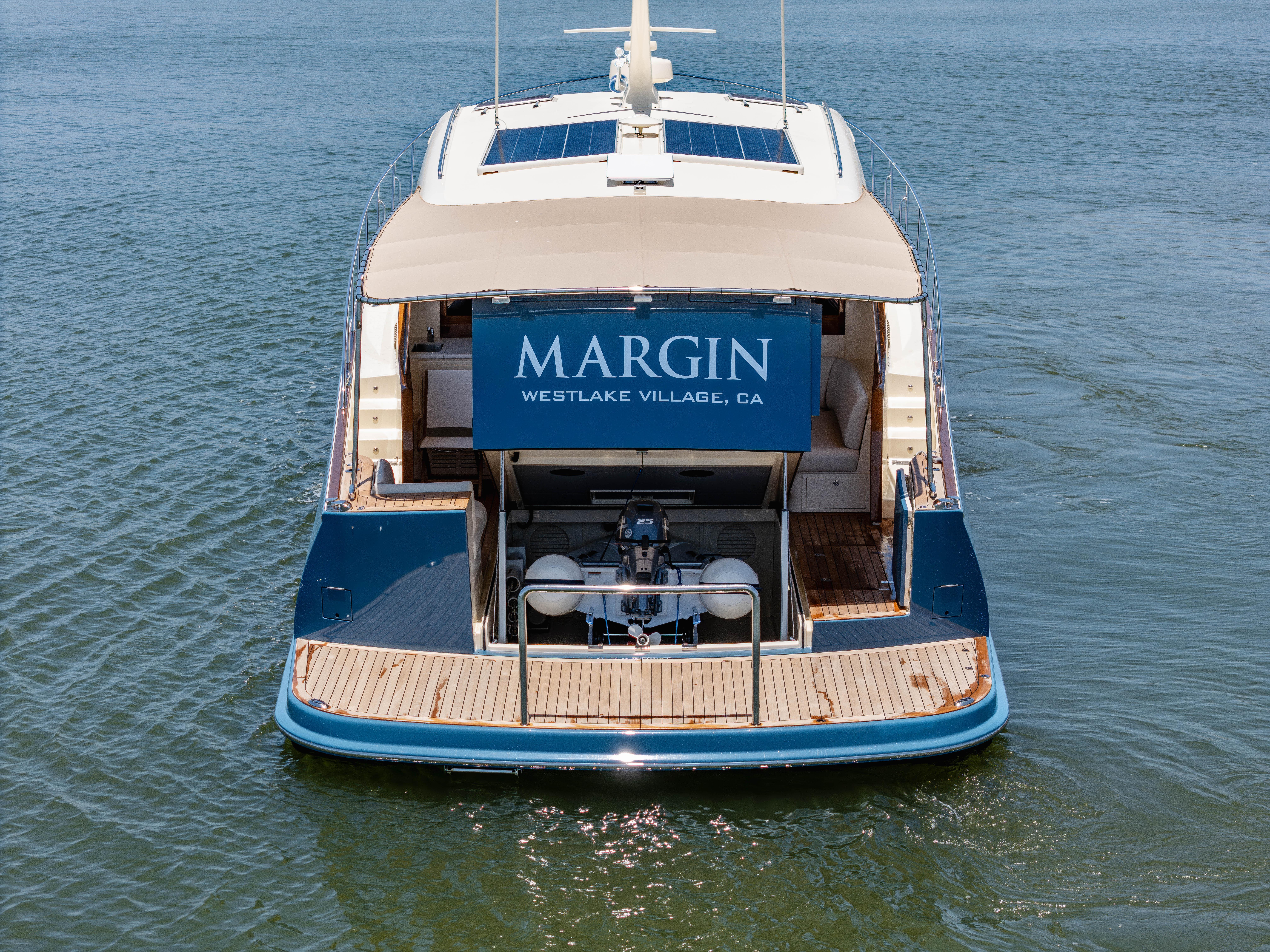

Tender garage with AB 10’ 6” Alum hull  tender w Yamaha 25 hp outboard

Navigational mast

 Mooring cleats stainless steel: aft quarter, mid, and bow

Cleats: stainless steel, folding at boarding platform

 Docklines (6) and Fendertex cylindrical fenders (4)

 Marine-grade upholstery

Decking: cockpit and swim platform solid teak, epoxy bonded, TDS caulking system

Gas struts on all deck hatches

Hatch and windscreen covers

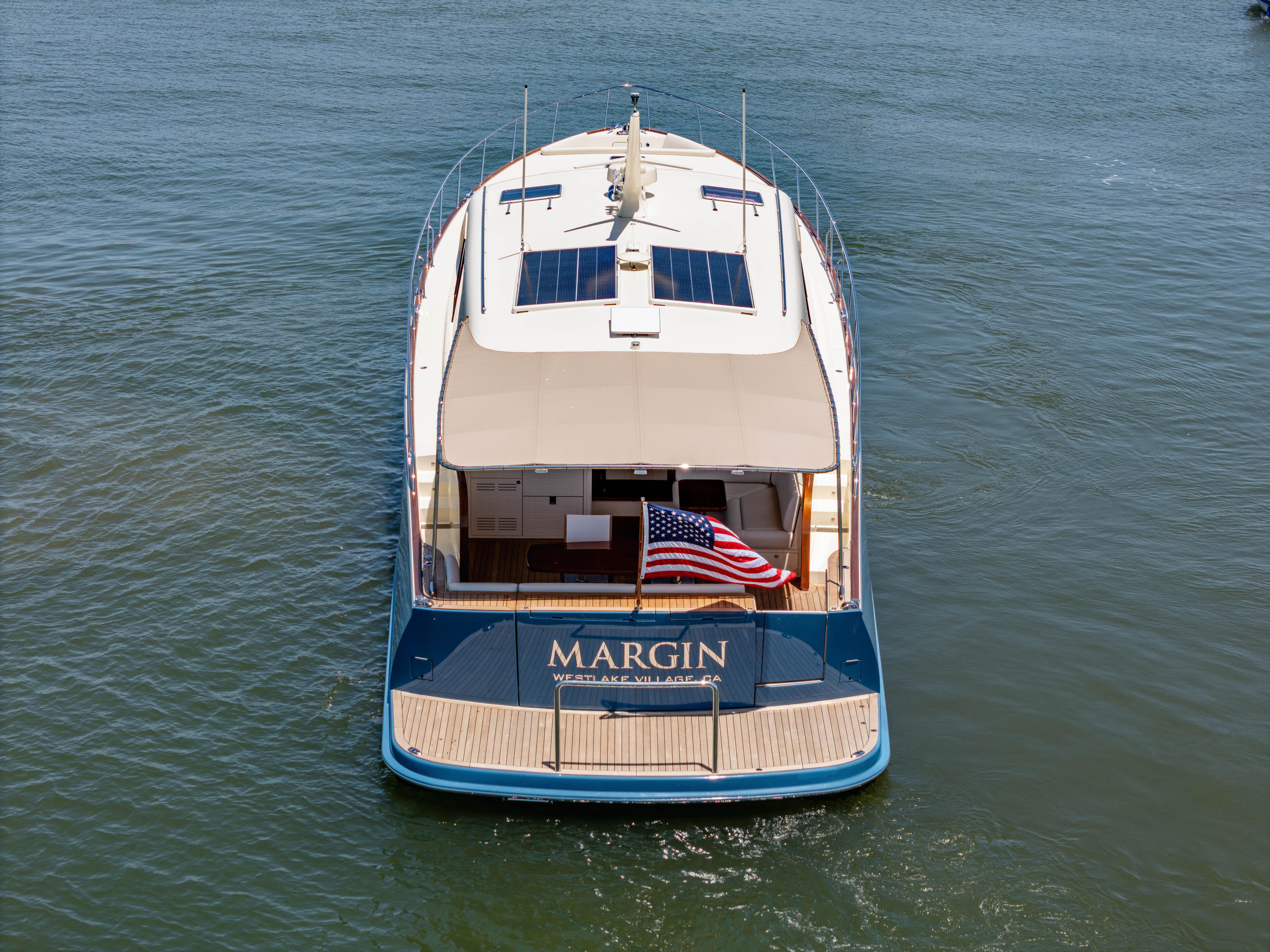

Stainless steel nameplate on transom

 Shower: hand-held, in cockpit, with retractable hose, hot/cold

 Cockpit wet bar with Silestone countertop, AC/DC refrigeration, sink and storage

 Forward-facing cockpit seat with teak table finished in high gloss varnish

Freshwater washdown (bow and stern)

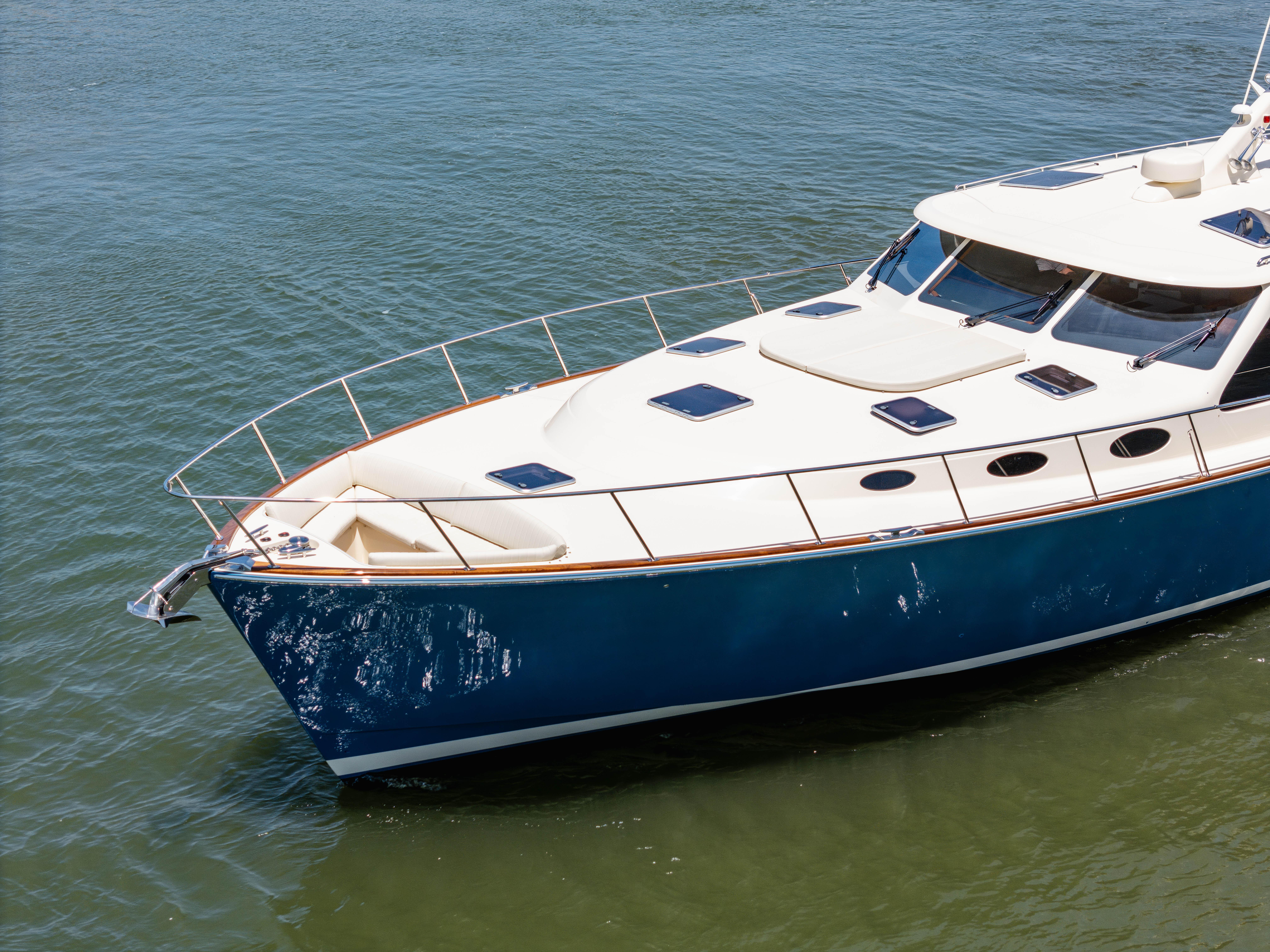

Full stainless steel bow rail

 Stainless steel swim platform safety rail, single

Stainless steel reboarding ladder at swim platform

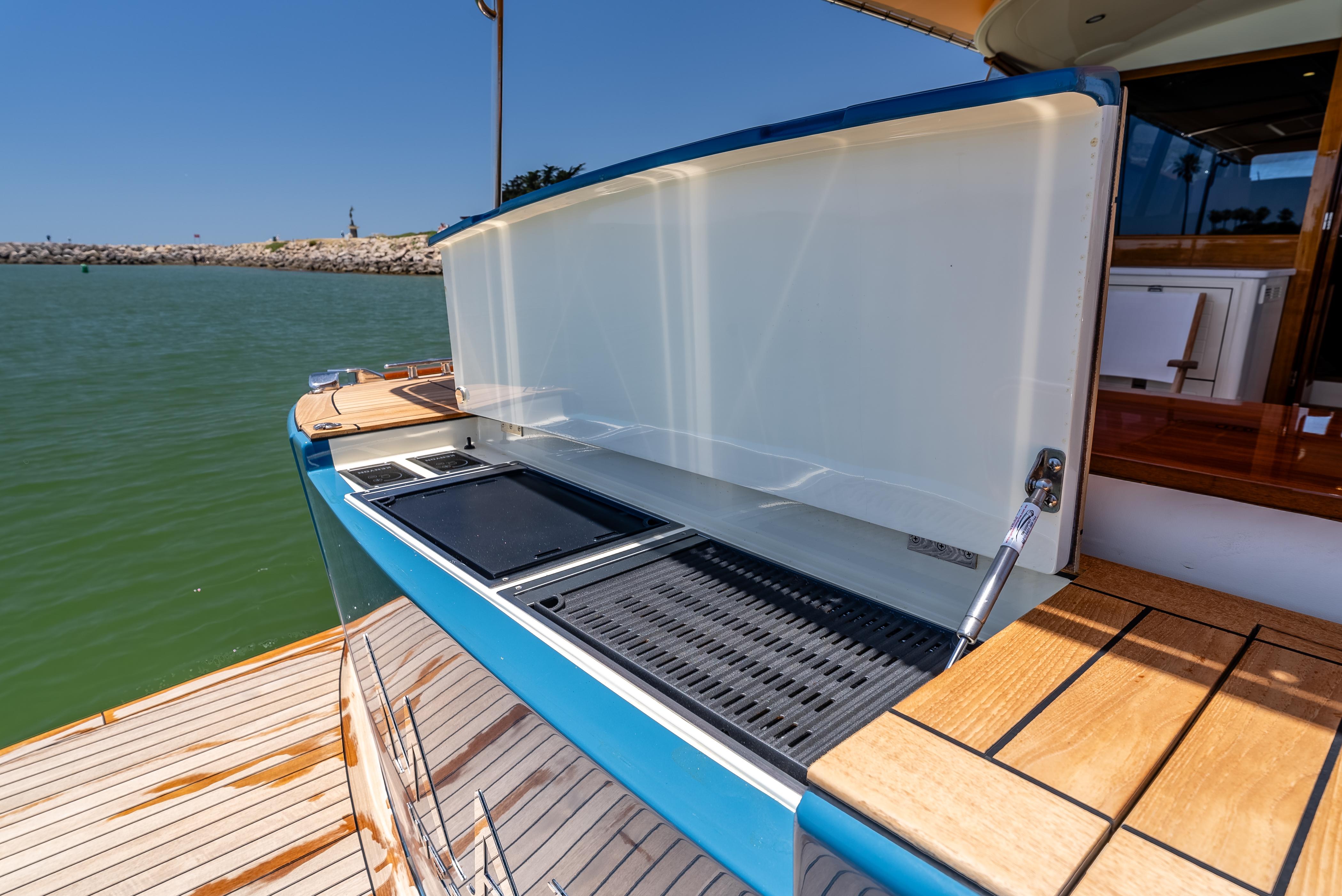

Transom lift-up electric BBQ (2) and storage locker

Double transom doors

Transom flag with varnished teak flagpole

Cockpit day hatch to tender garage

Designated glassware cabinet

Teak Toe rail

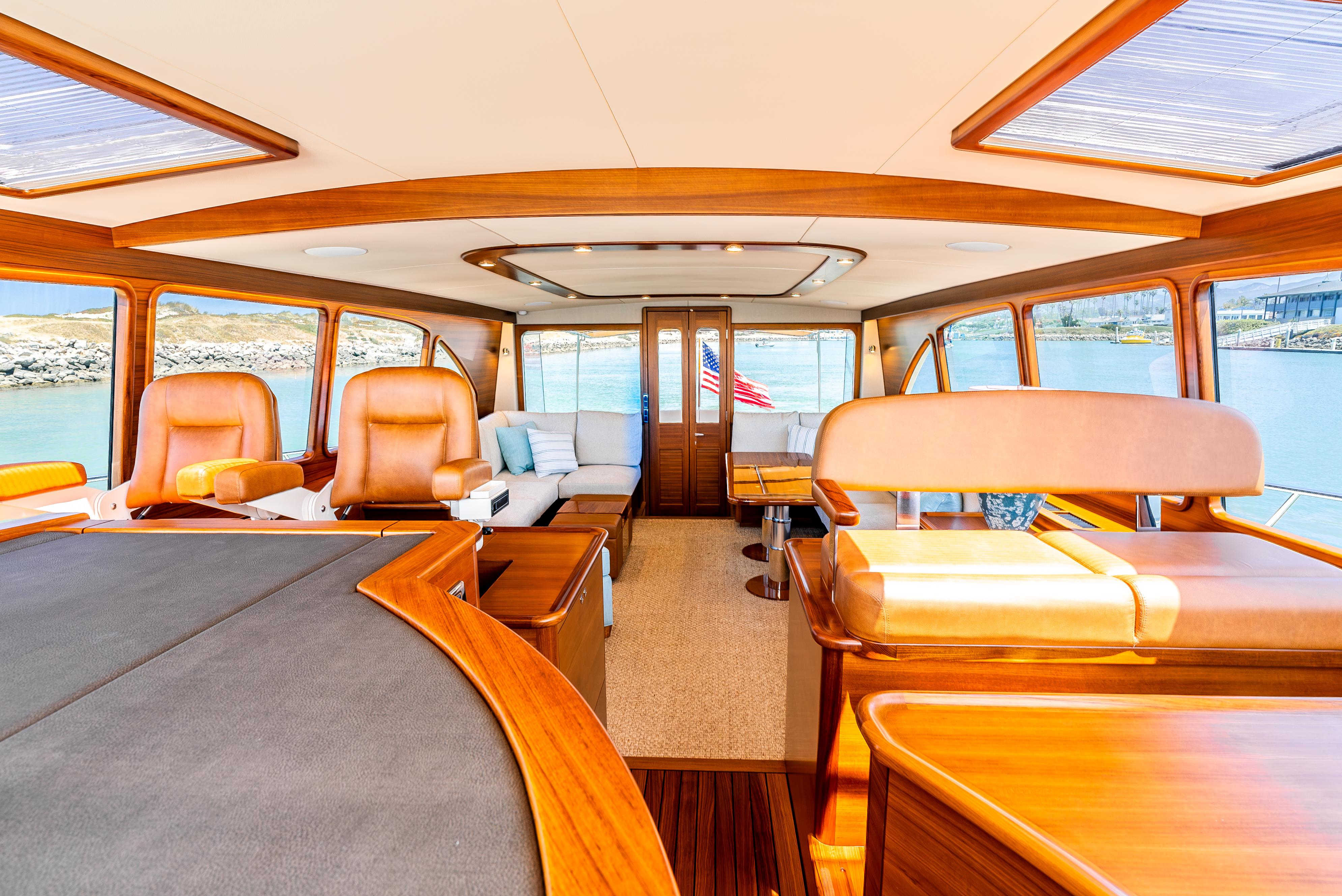

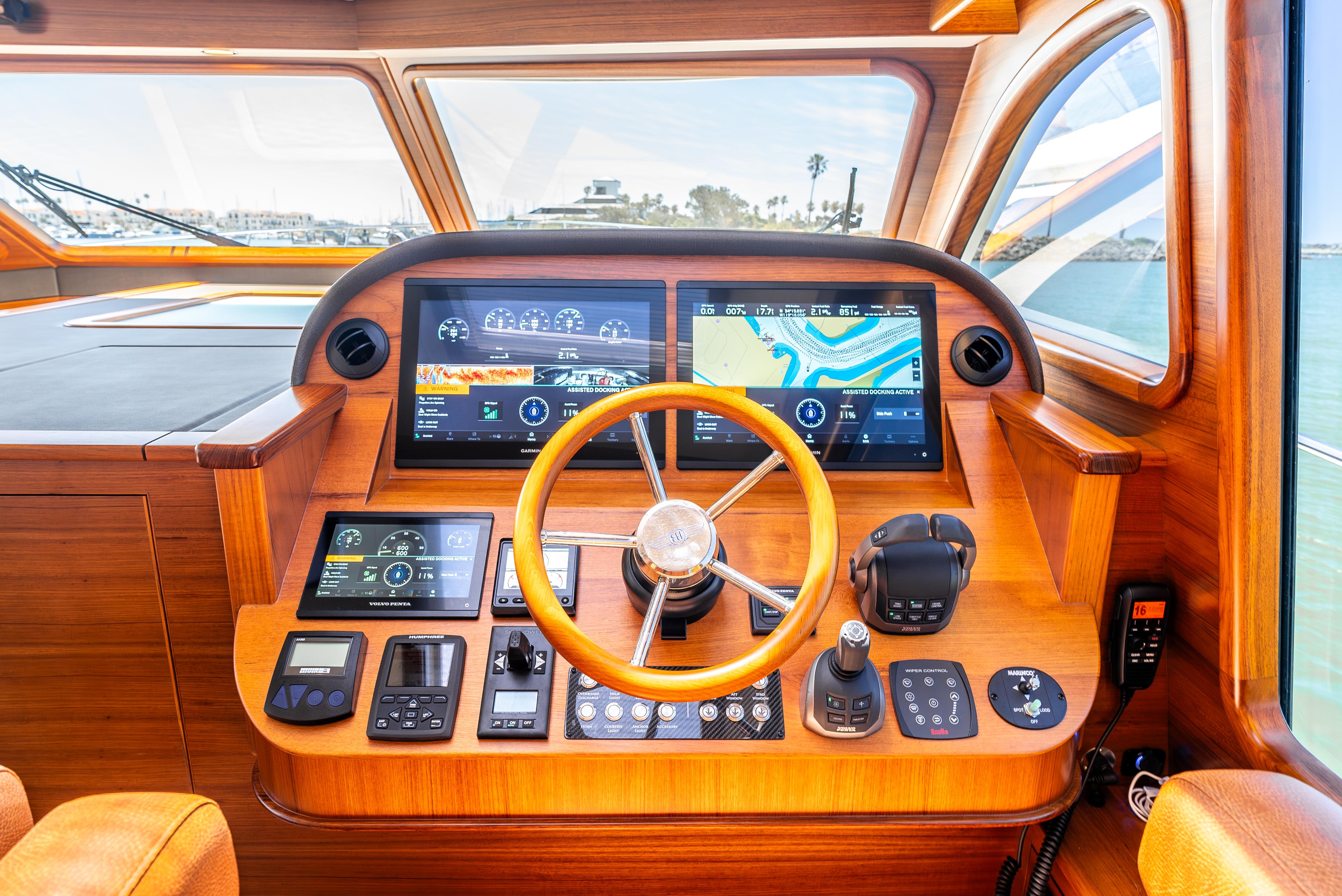

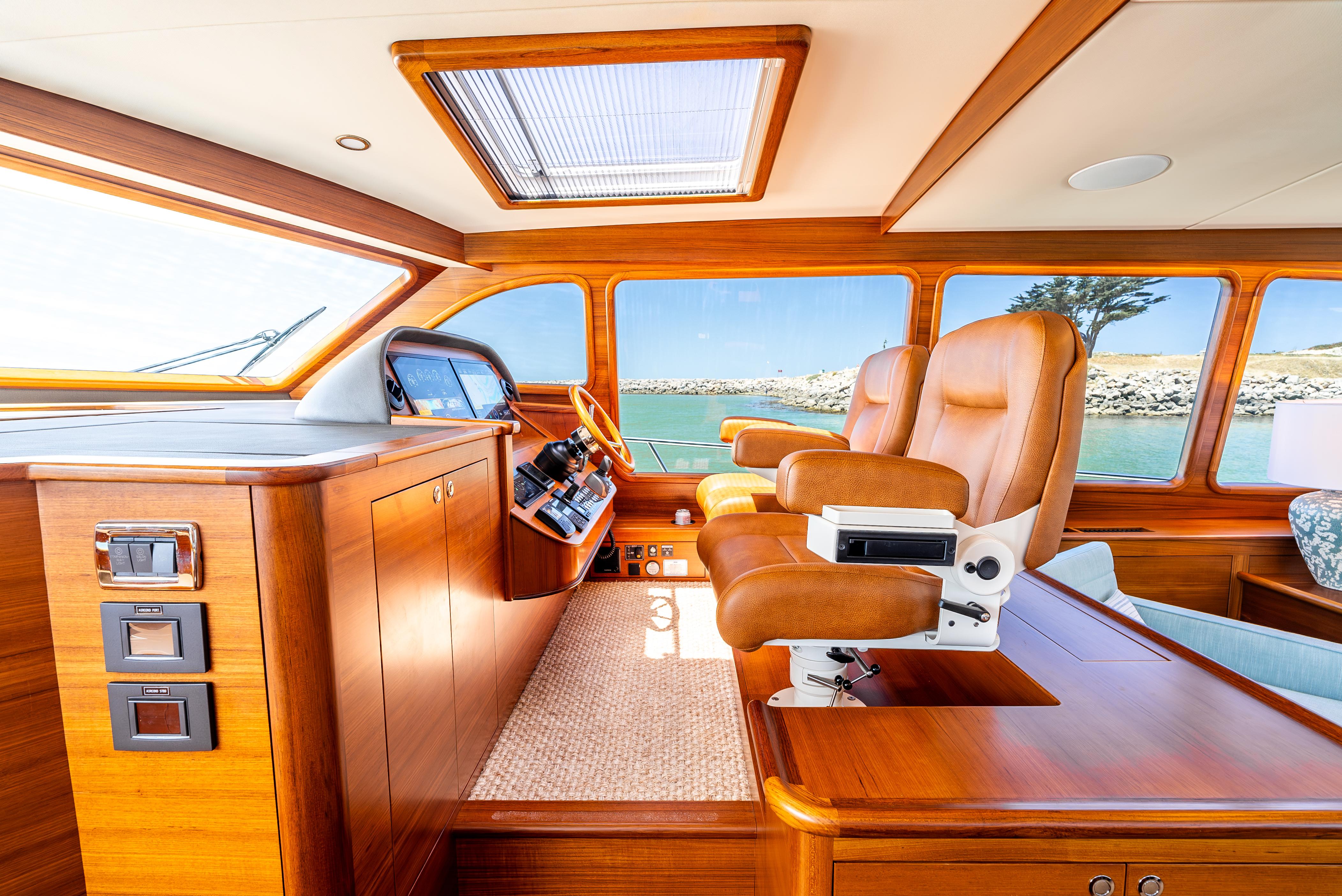

Ergonomically designed helm station, electronic instrument panel, teak

steering wheel and custom helm seating

Windscreen, clear tempered glass

Windshield wipers and washers with electronic touch control panel

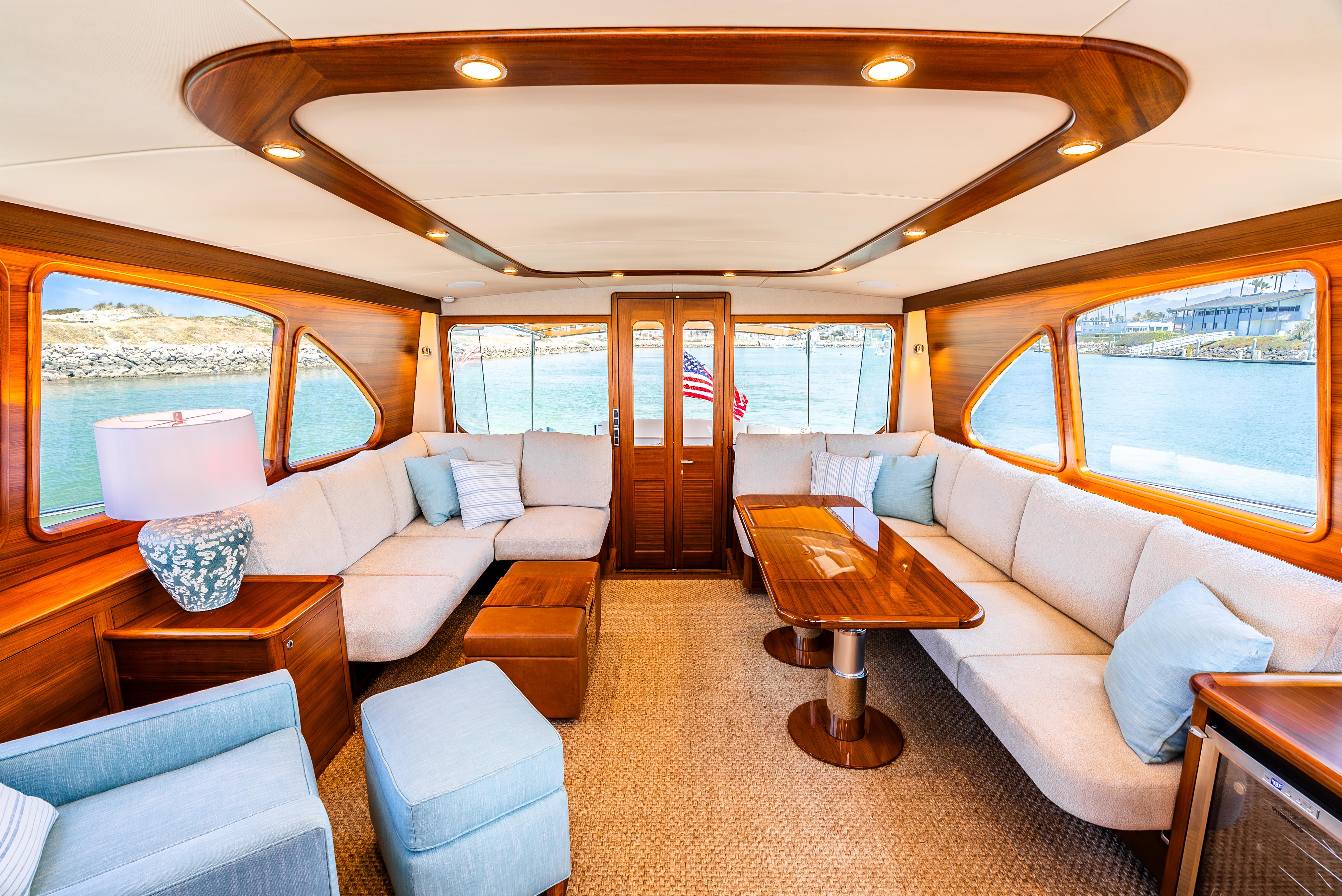

Custom carpeted salon with acoustic underlay

Custom retractable and swing out SAMSUNG 50" HDTV

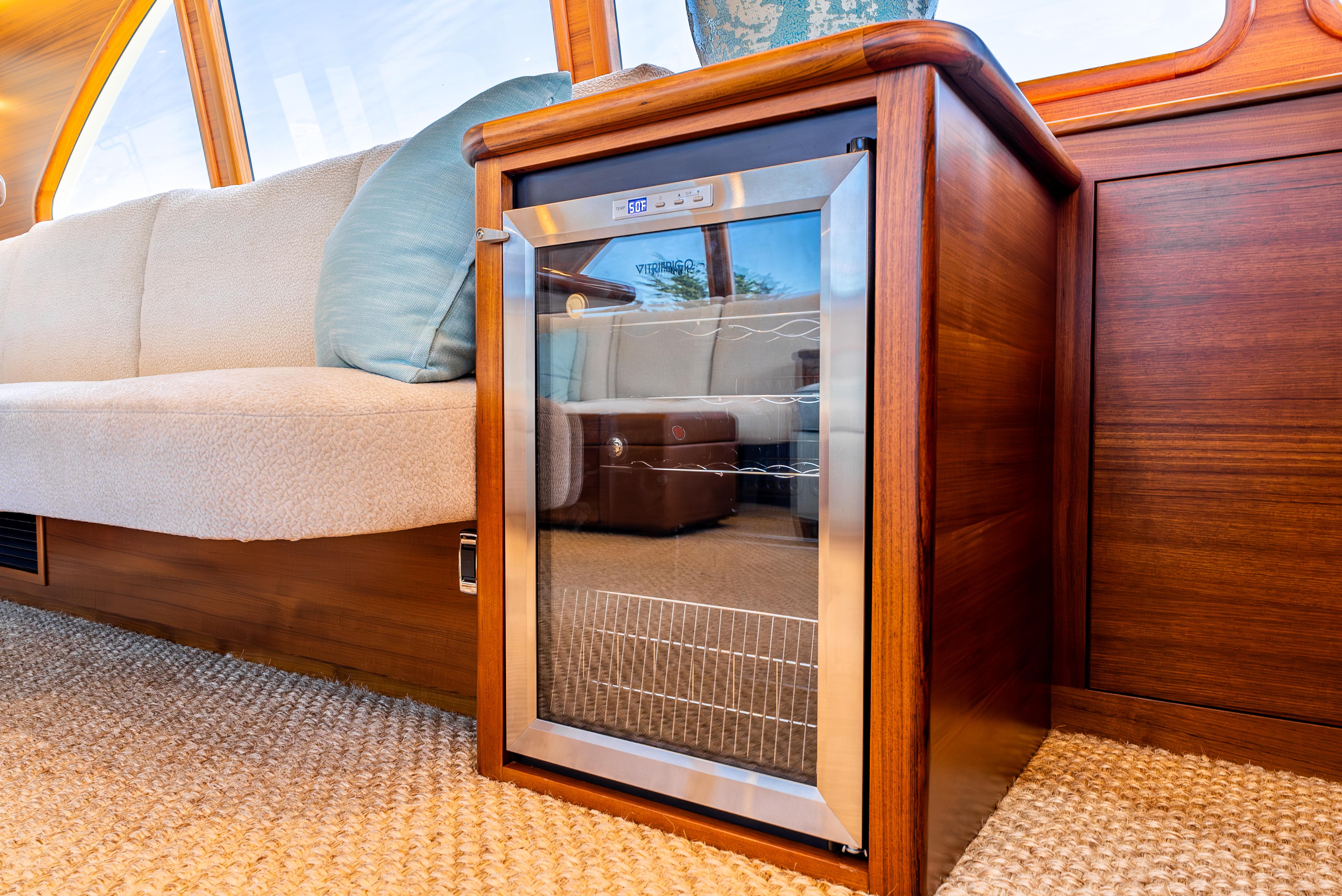

Vitrifrigo DCW62 Wine Cellar

LED overhead lights

Solid teak cabinetry with satin finish

Storage lockers with positive locking hardware

Teak, high-gloss varnish, fixed table

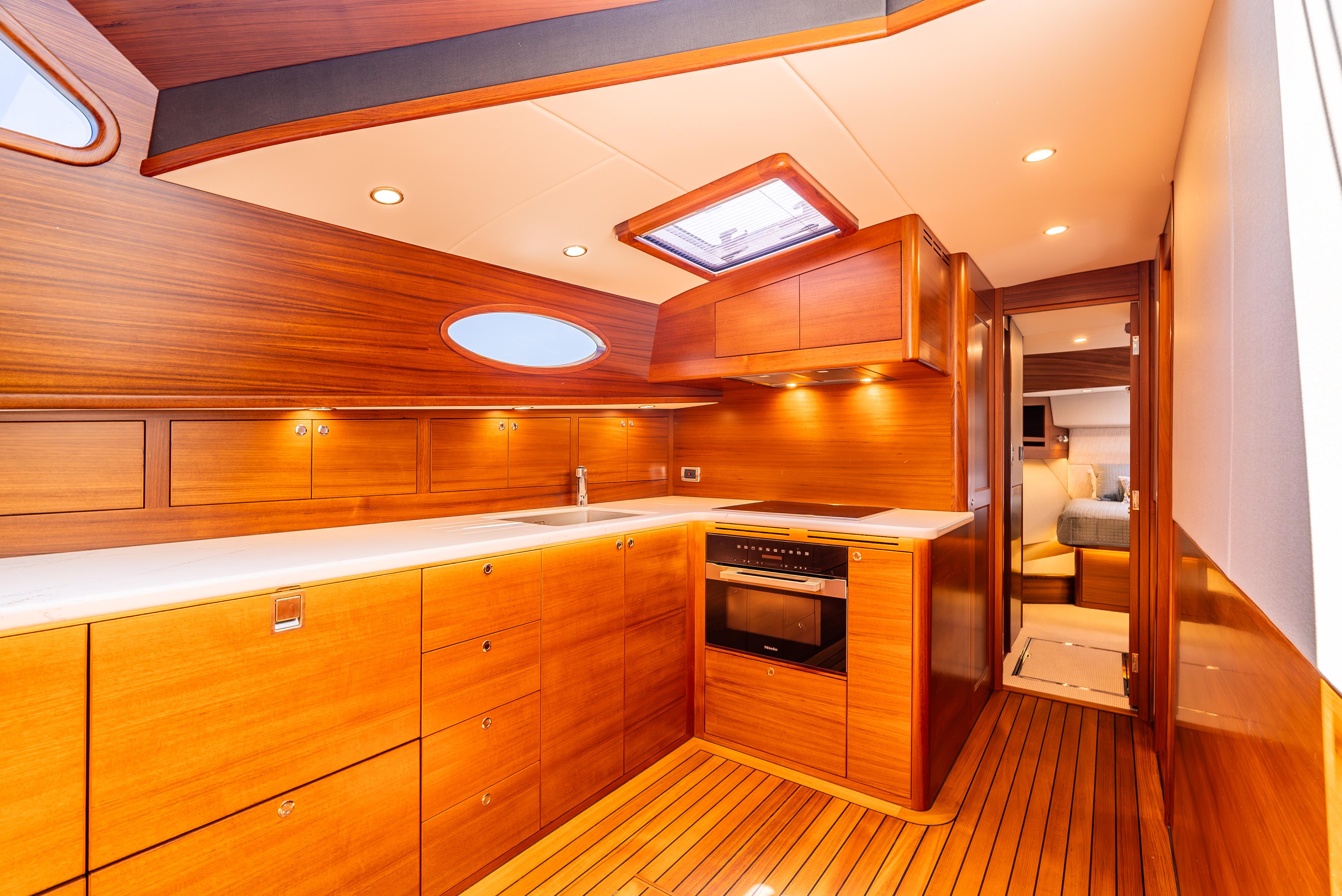

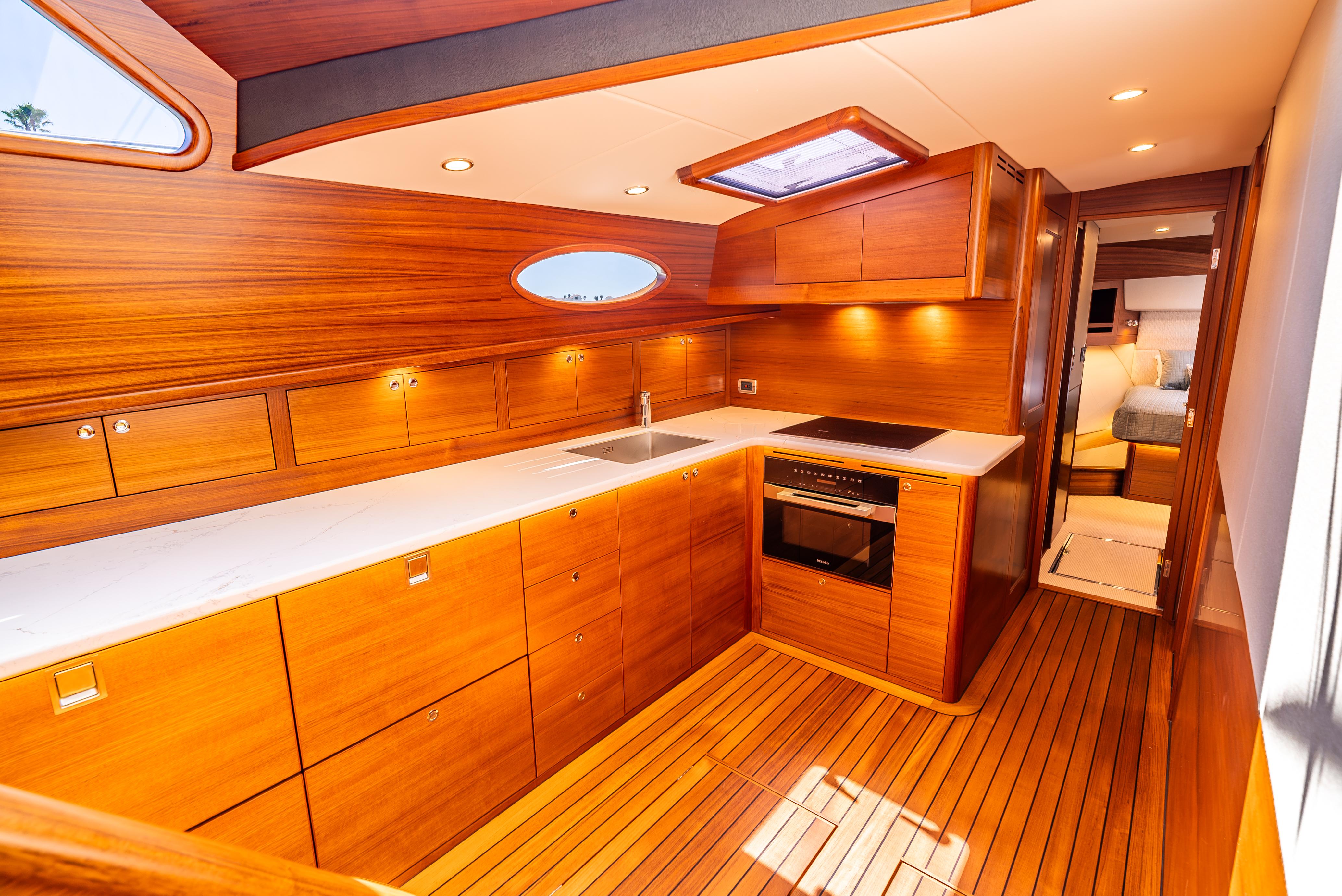

Miele H7240 Speed Oven

Miele 6320 3 burner Induction cooktop

Refrigerator AC/DC compatible

• Water purification system 3M high-flow

series in galley and icemaker

• Solid Silestone countertop incorporating

a recessed stainless steel sink, designer

faucet

• Under-bench recessed disposal bin with Silestone cover

Plate rack with cupholders

Fisher & Paykel DD24S19N Dishwasher

LED overhead lighting

 Branded cutlery and ceramic tableware

(2) GARMIN 8617 Radar/ Plotter / Sounder

Garmin Fanton 24X Dome  Radar

VOLVO Auto Pilot

VOLVO 9" display with sonar function

GARMIN VHF 315 Radio

AIS 800

Engine room camera

Salon -SONOS Amp , SONOS SUB with (4) Bowers and Wilkins 6 Speakers

Cockpit- Sonos Amp with Bowers and Wilkins 8 Speakers

Salon- Custom Retractable/Swing out Samsung 50 " HDTV

Master stateroomSamsun 50' HDTV

Fwd stateroom Samsun 43"

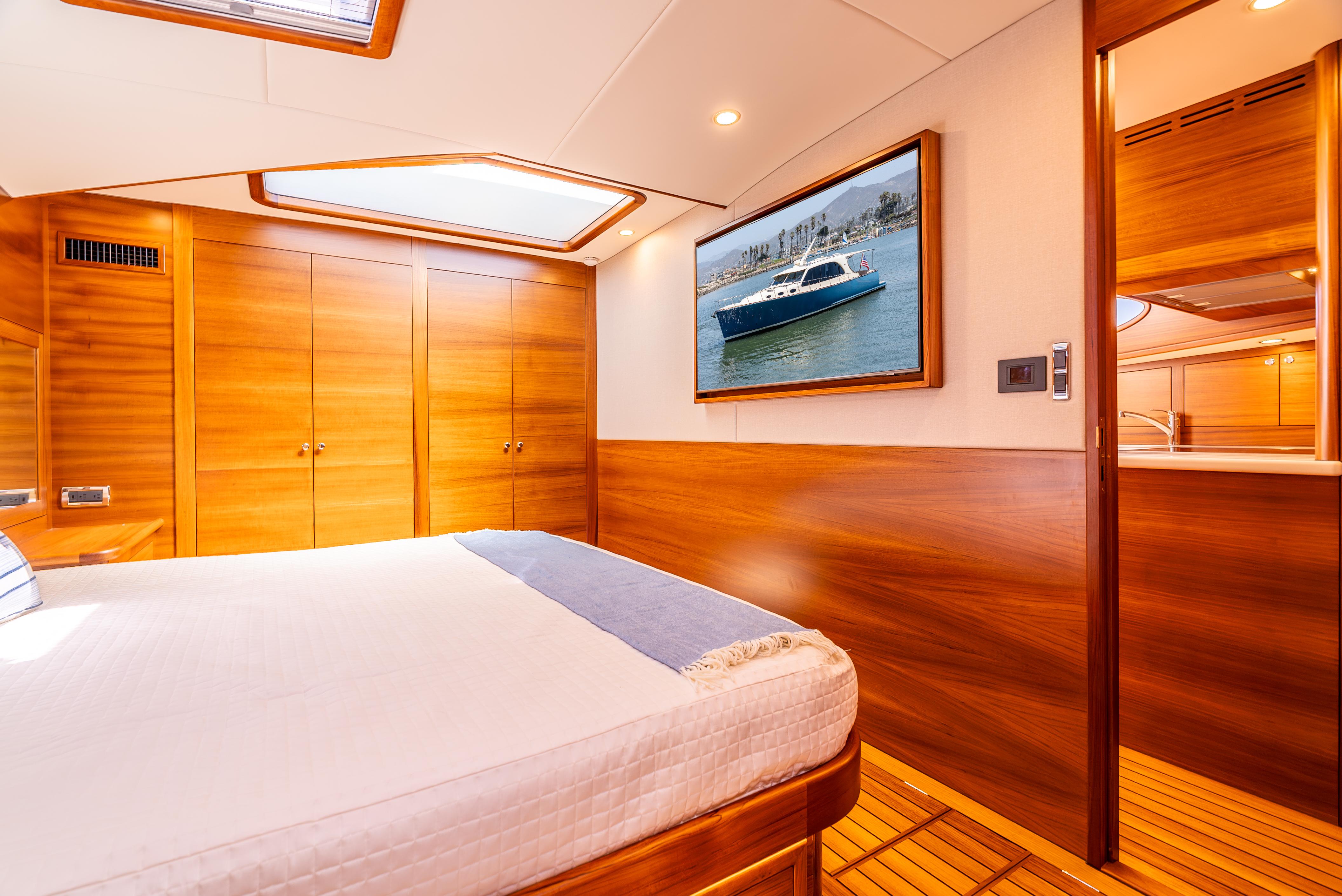

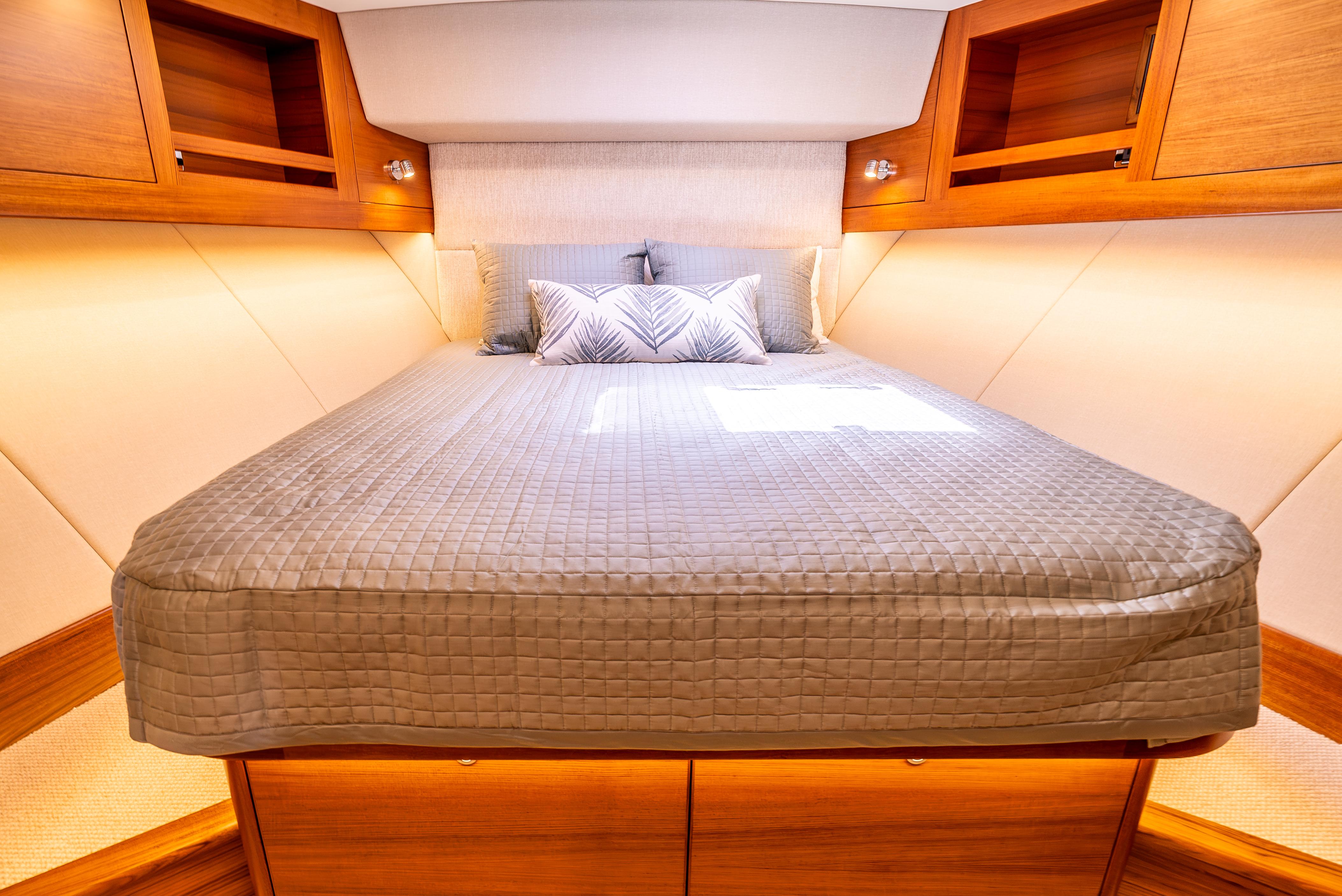

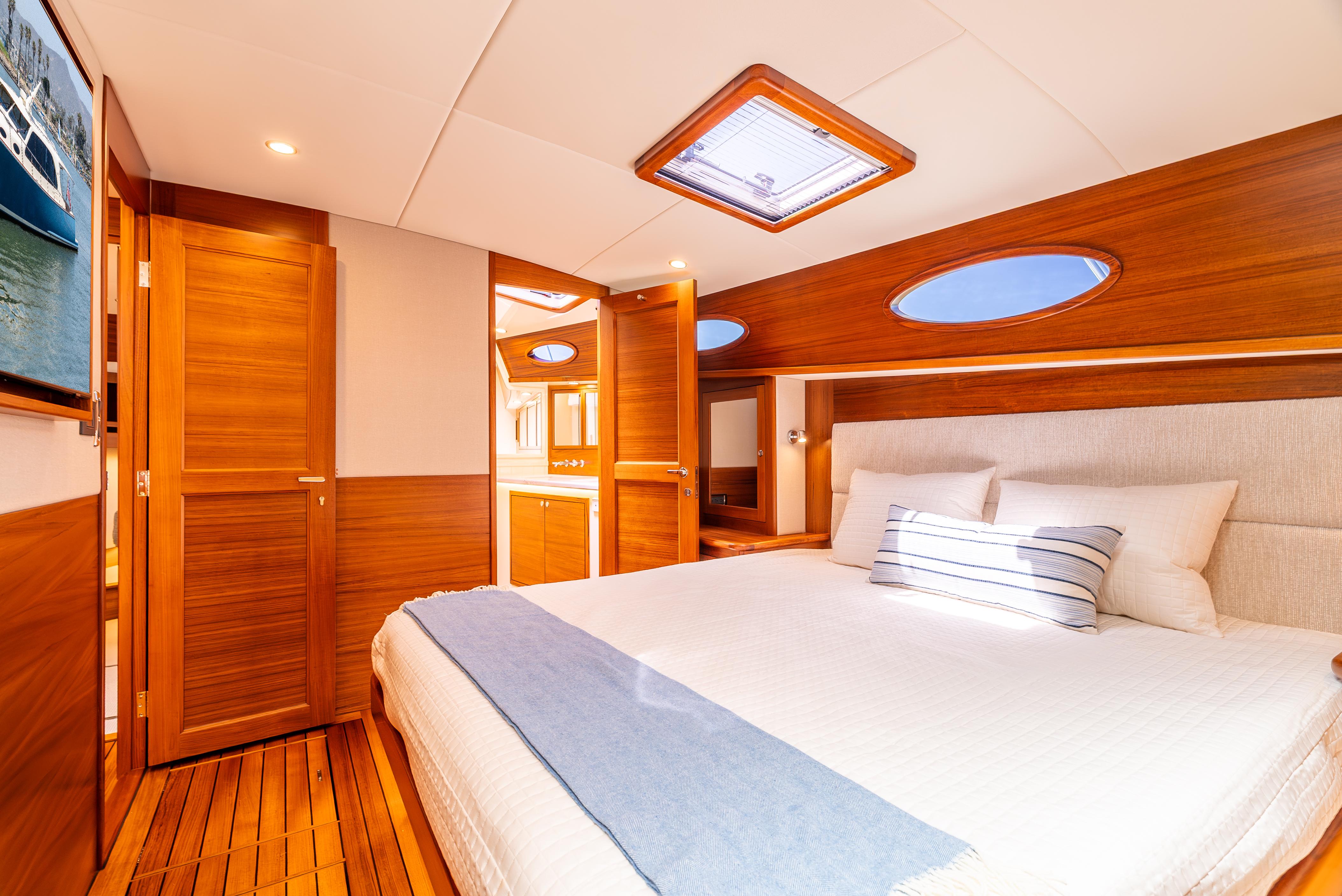

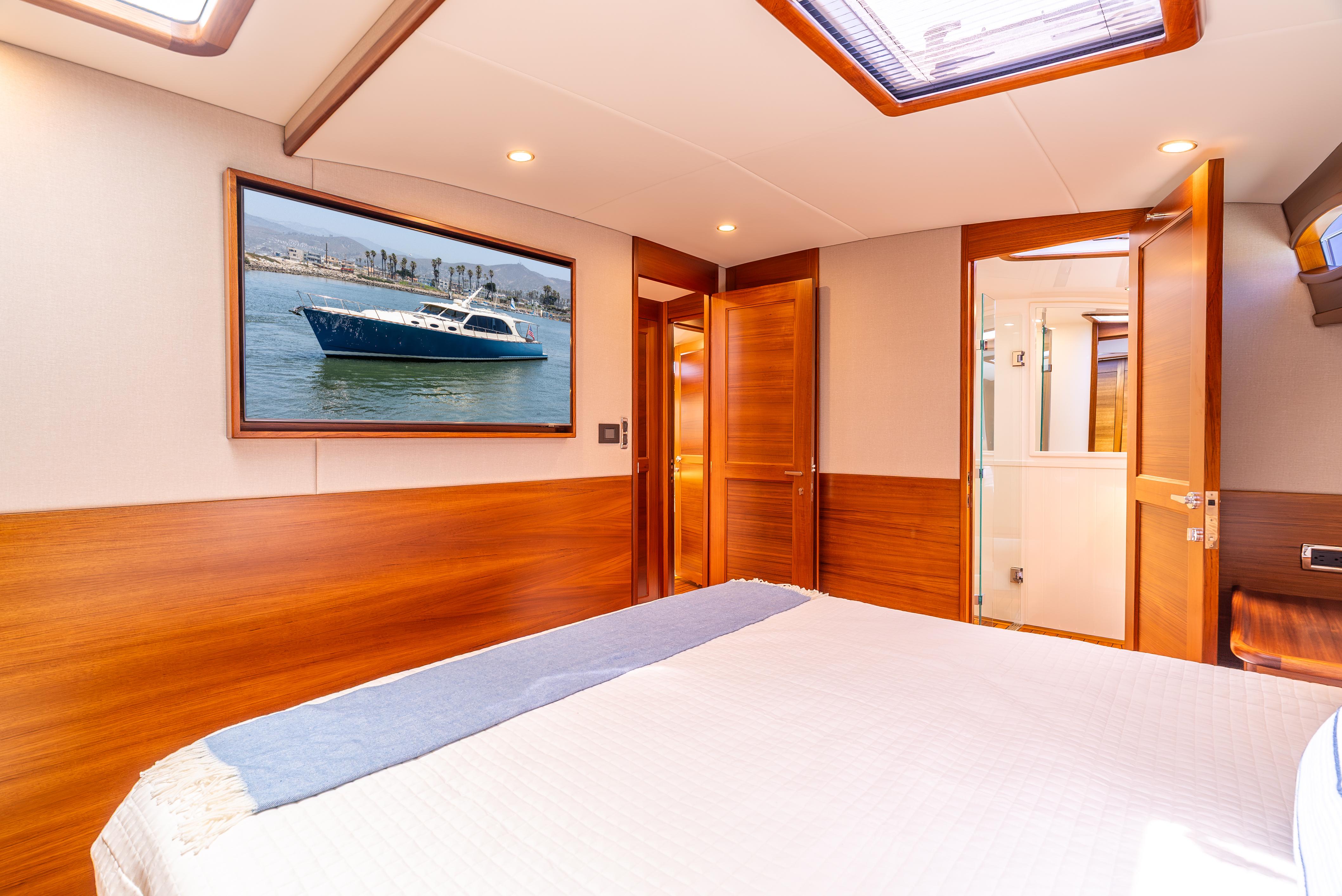

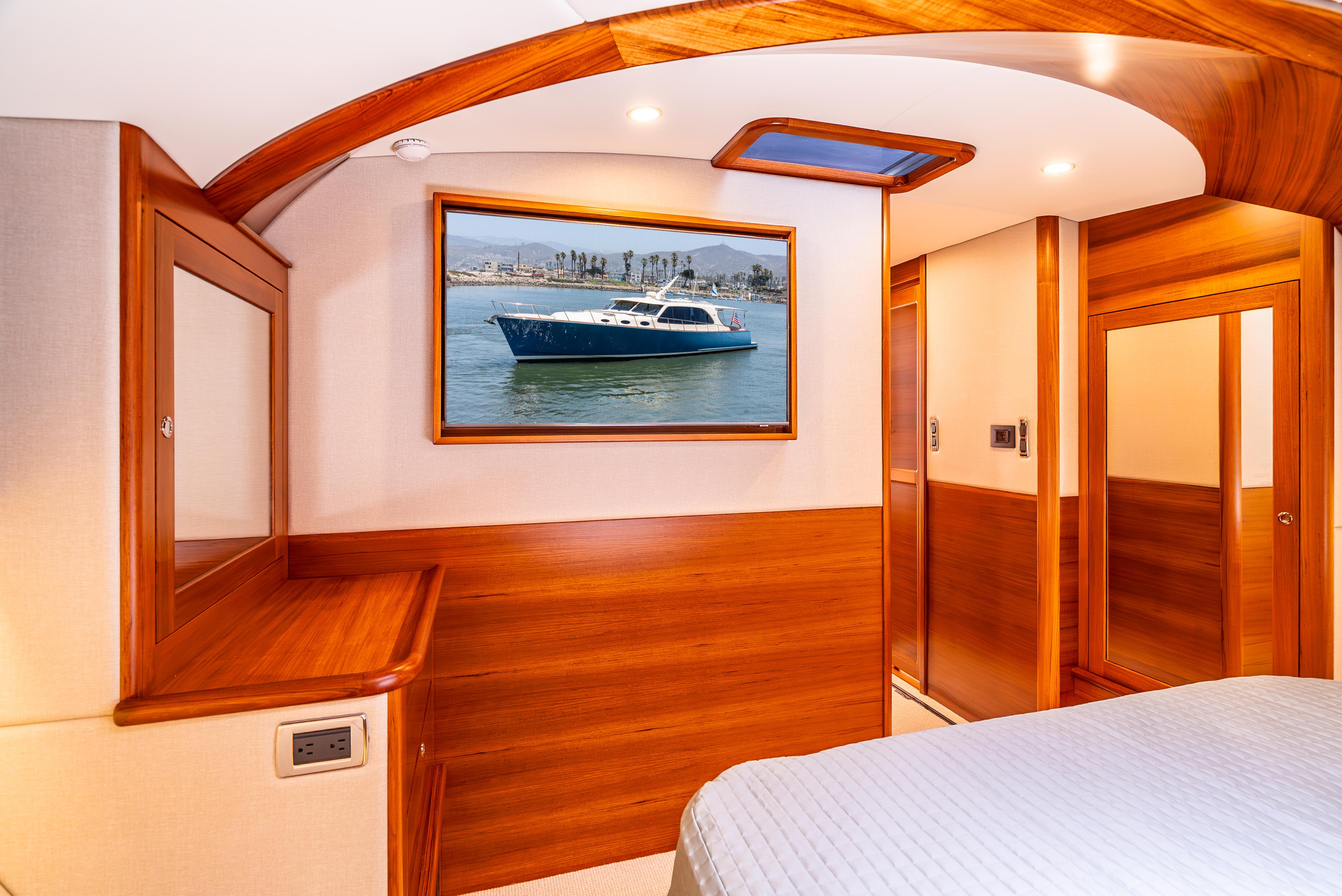

Custom king-sized island berth with latex memory foam mattress

Custom carpet with acoustic underlay

•Hanging locker with storage and mirrors

LED overhead lighting

Premium quality custom upholstery

Reading lights

50"Smart TV

Solid teak cabinetry with satin finish

Square Lewmar overhead hatch with privacy blind and screen

Storage lockers with positive locking hardware

Under-berth storage drawers

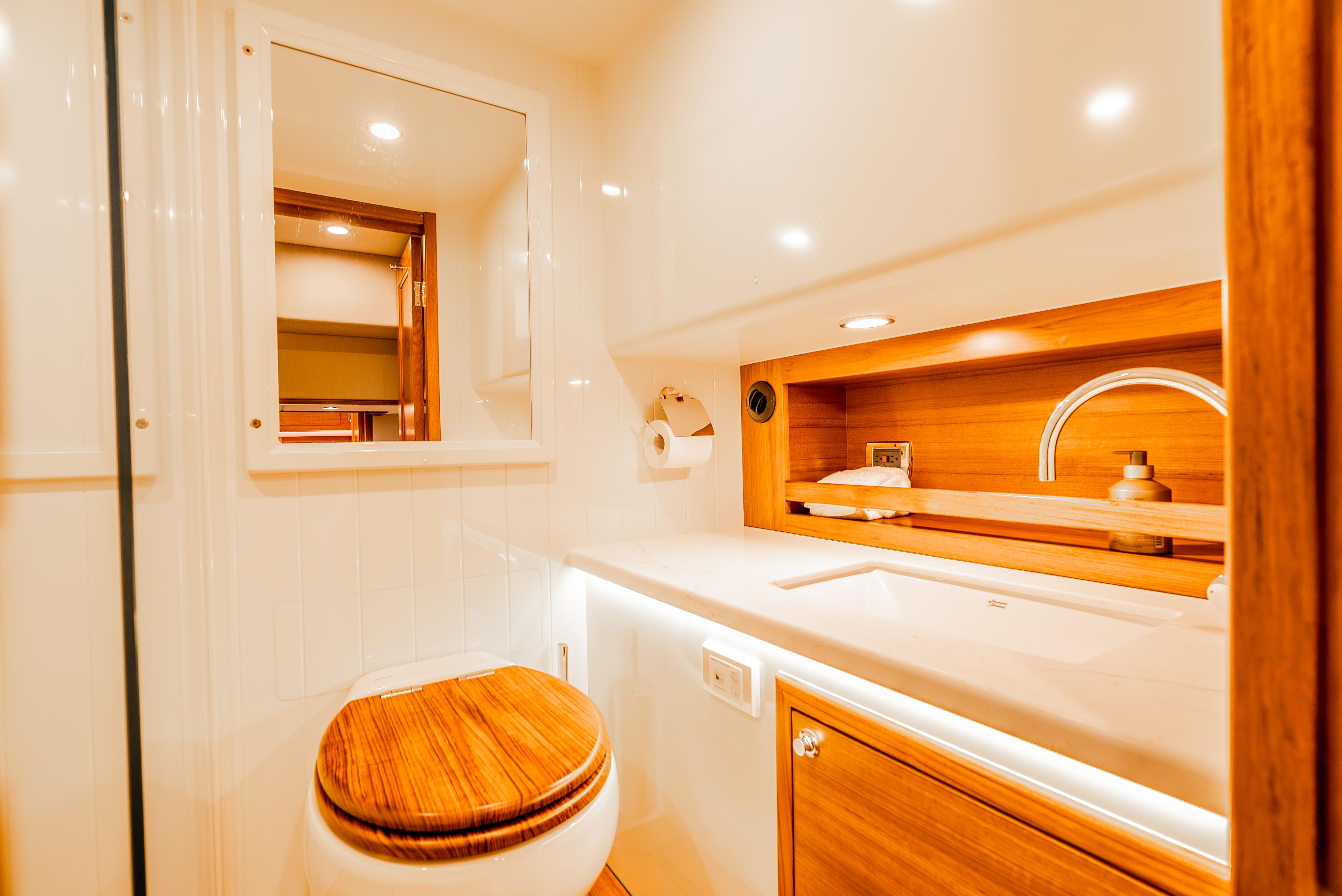

Fully enclosed, traditional in design with contemporary finishes incorporating

a solid Silestone vanity top, and designer faucet

Mirror

LED overhead lighting

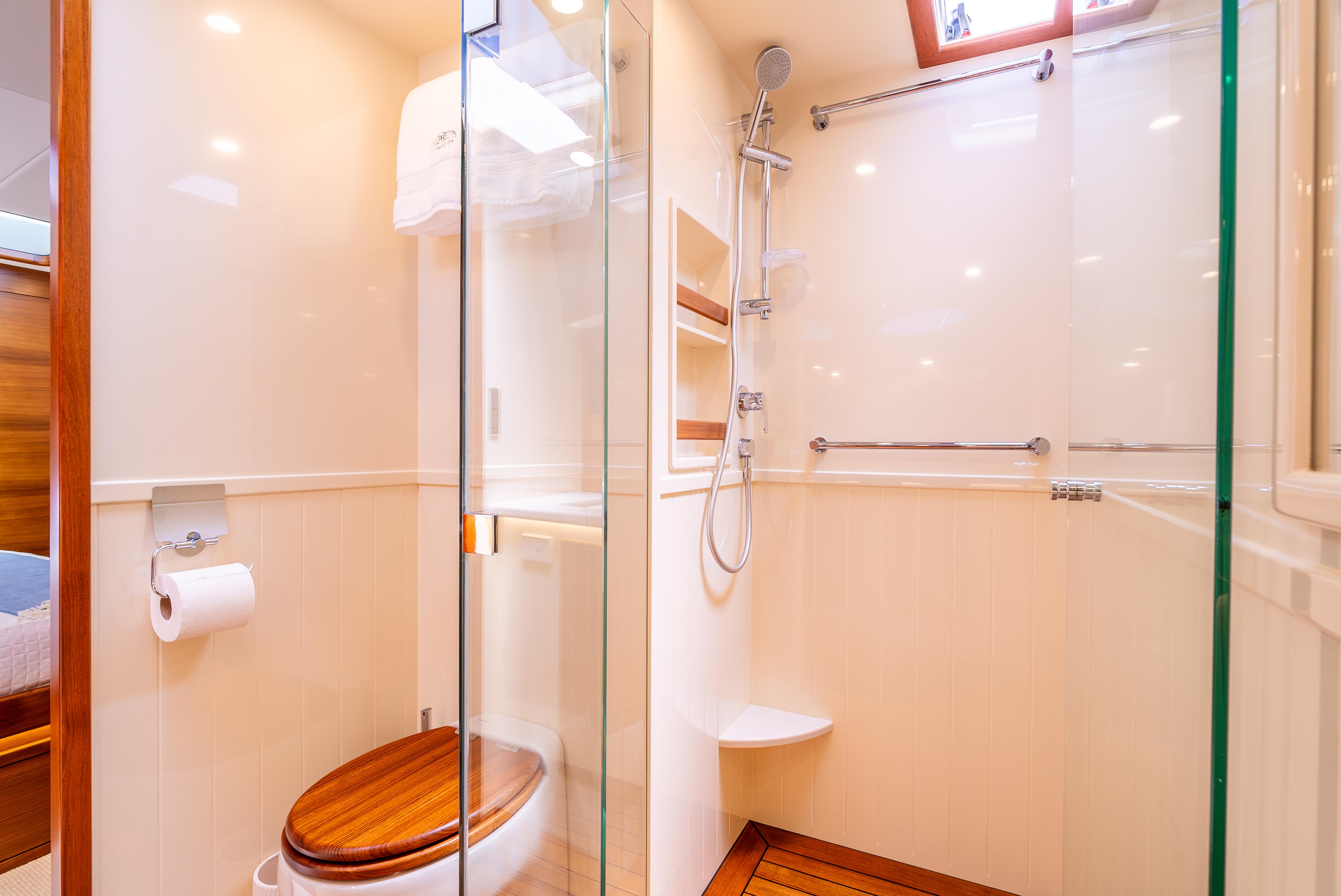

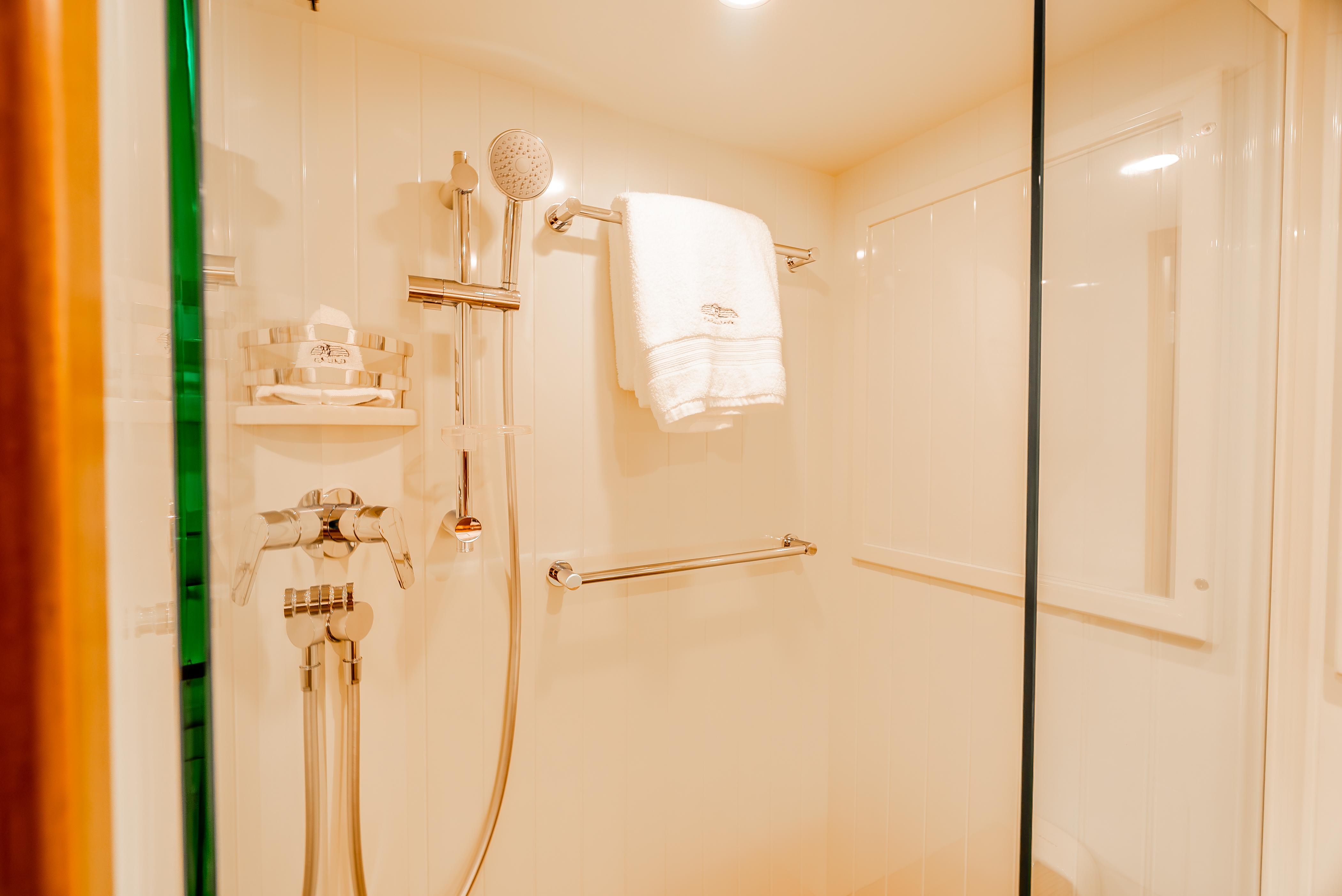

 Shower with frameless glass door and automatic sump pump

Teak flooring

Solid teak cabinetry with satin finish

Square Lewmar overhead frosted hatch

Storage lockers with positive

locking hardware

Tecma Silence Plus toilet with teak seat

Towel rail, chrome (2)

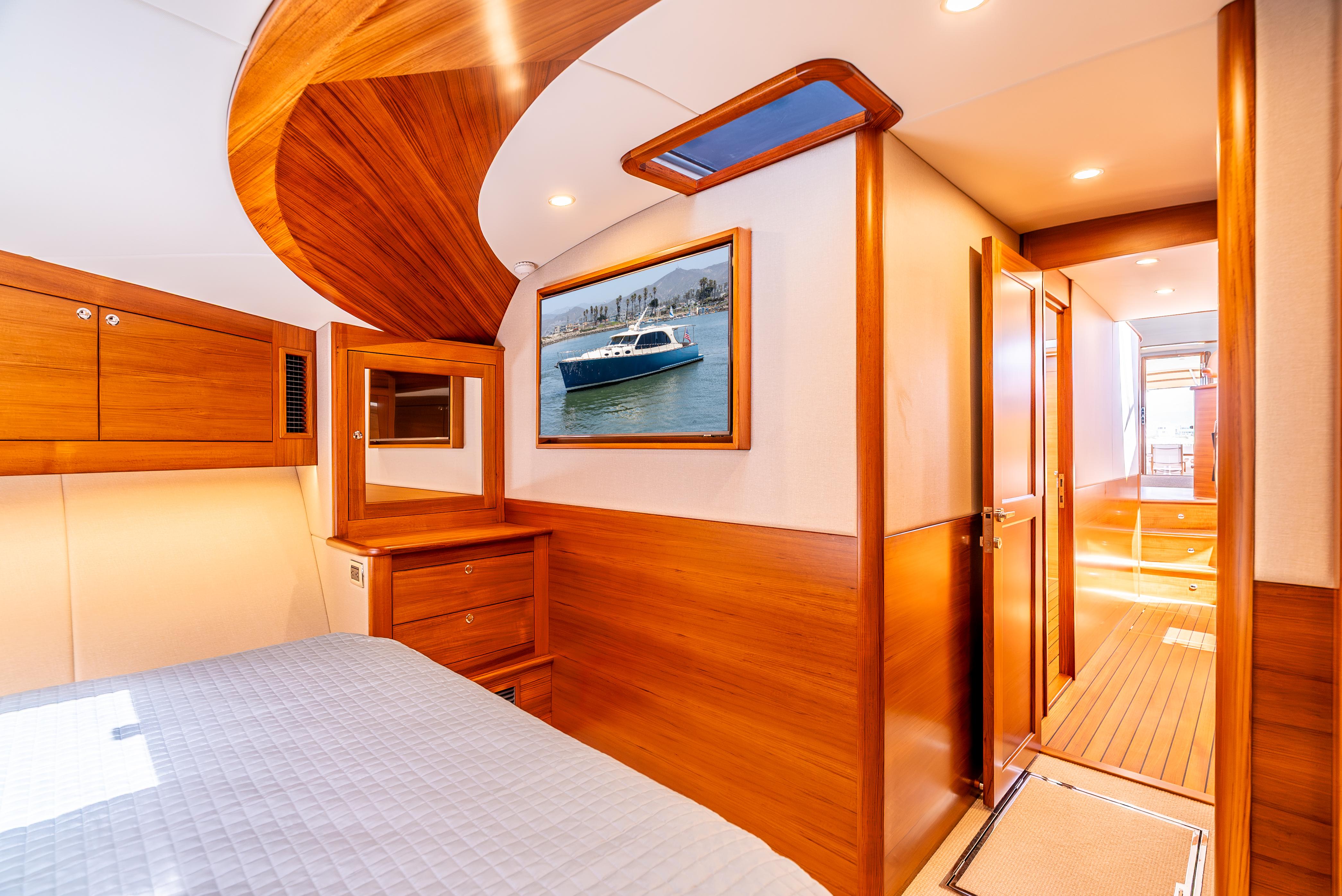

Custom queen-sized island berth with latex memory foam mattress

Custom carpet with acoustic underlay

Dressing cabinets and mirrors

LED overhead lighting

Premium quality custom upholstery

Reading lights

Custom portholes

Solid teak cabinetry with satin finish

Square Lewmar overhead hatch with privacy blind and screen

Storage lockers with positive locking hardware

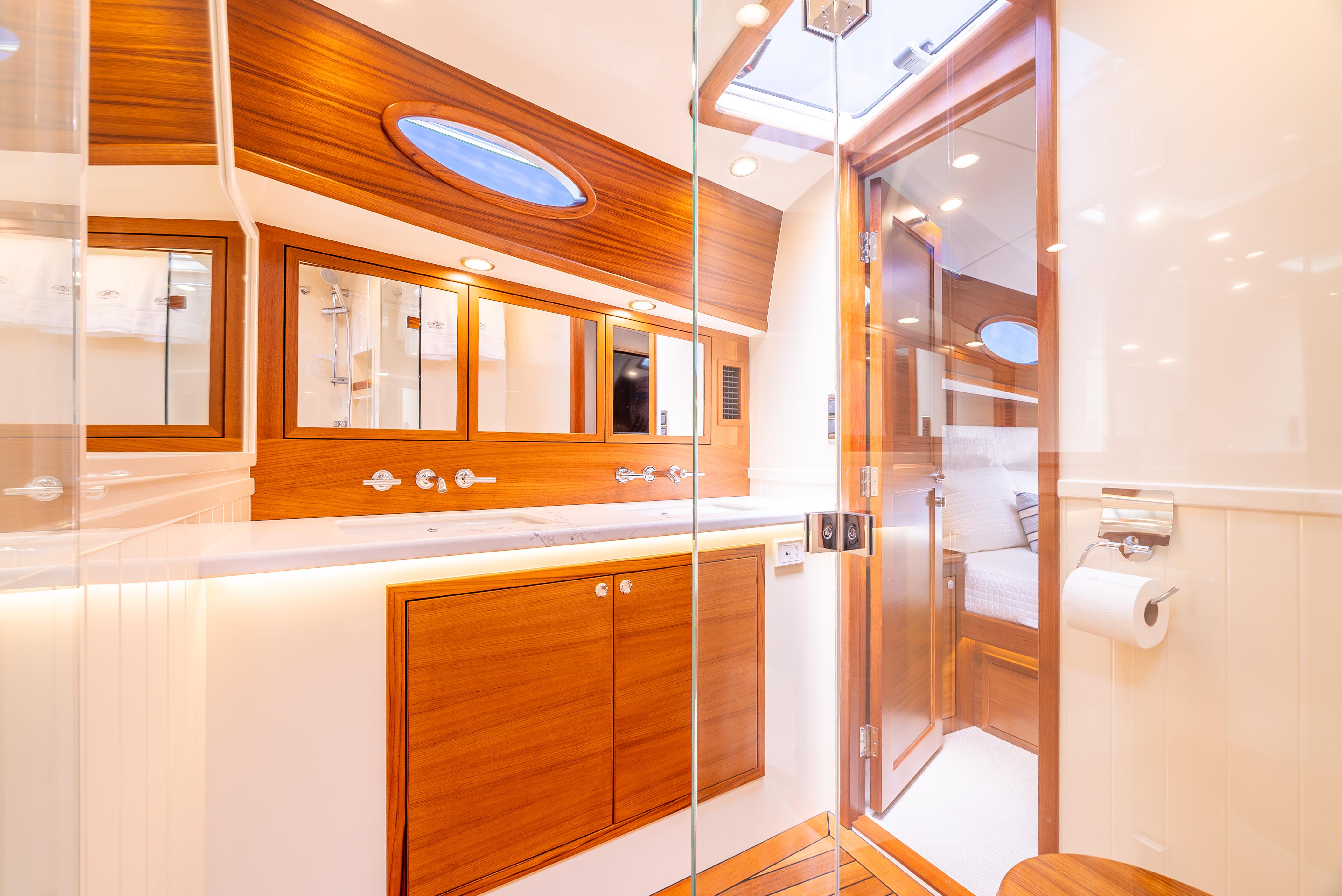

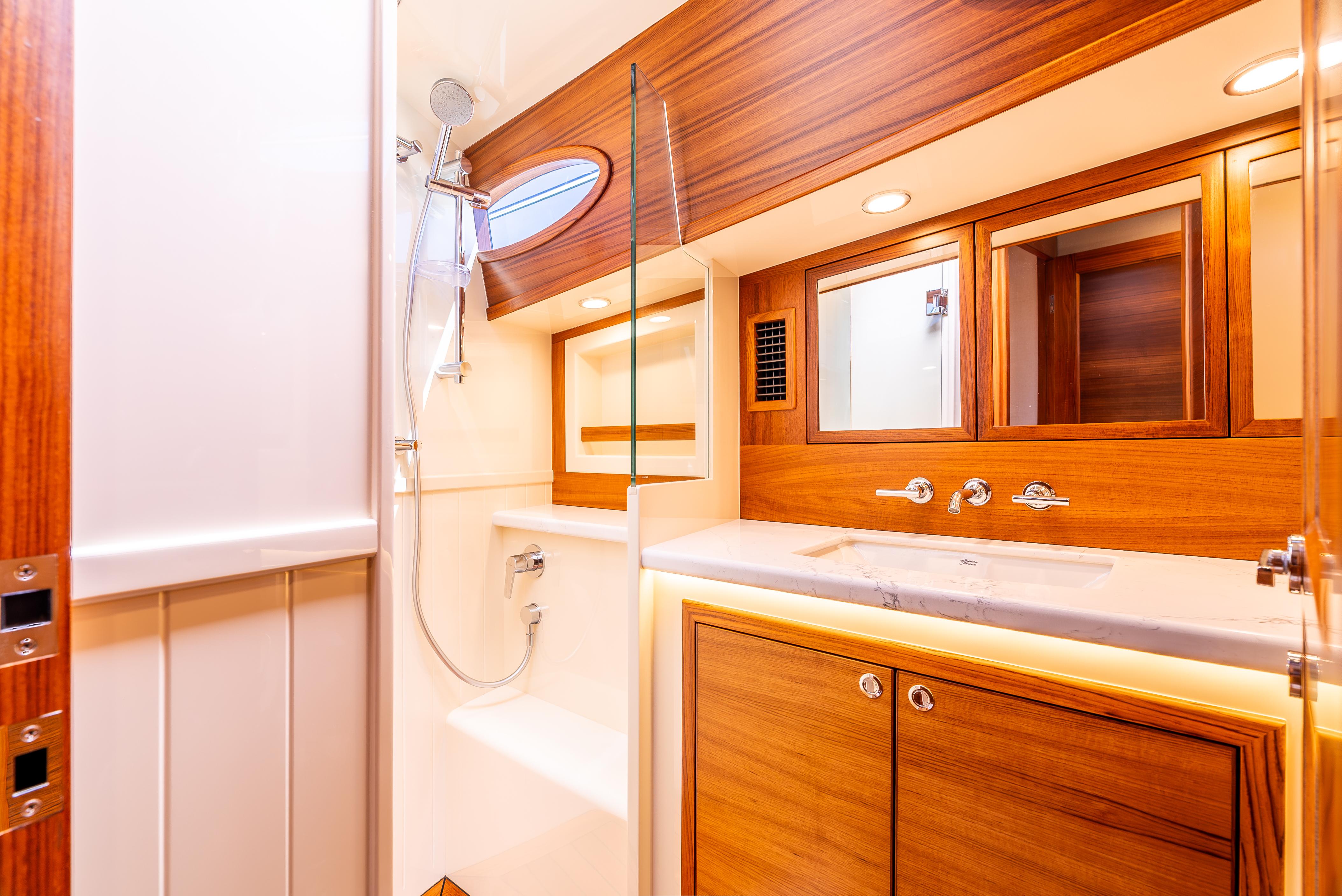

Fully enclosed, traditional in design with contemporary finishes incorporating

a solid Silestone vanity top, porcelain above-counter basin and designer faucet

LED overhead lighting

Mirror

Shower with frameless glass door and automatic sump pump

Teak flooring

Solid teak cabinetry with satin finish

Square Lewmar overhead frosted hatch

Storage lockers with positive locking hardware

Tecma Silence Plus toilet with teak seat

 Toilet roll holder, accessories and wall-mounted brush holder

Towel rail, chrome (2)

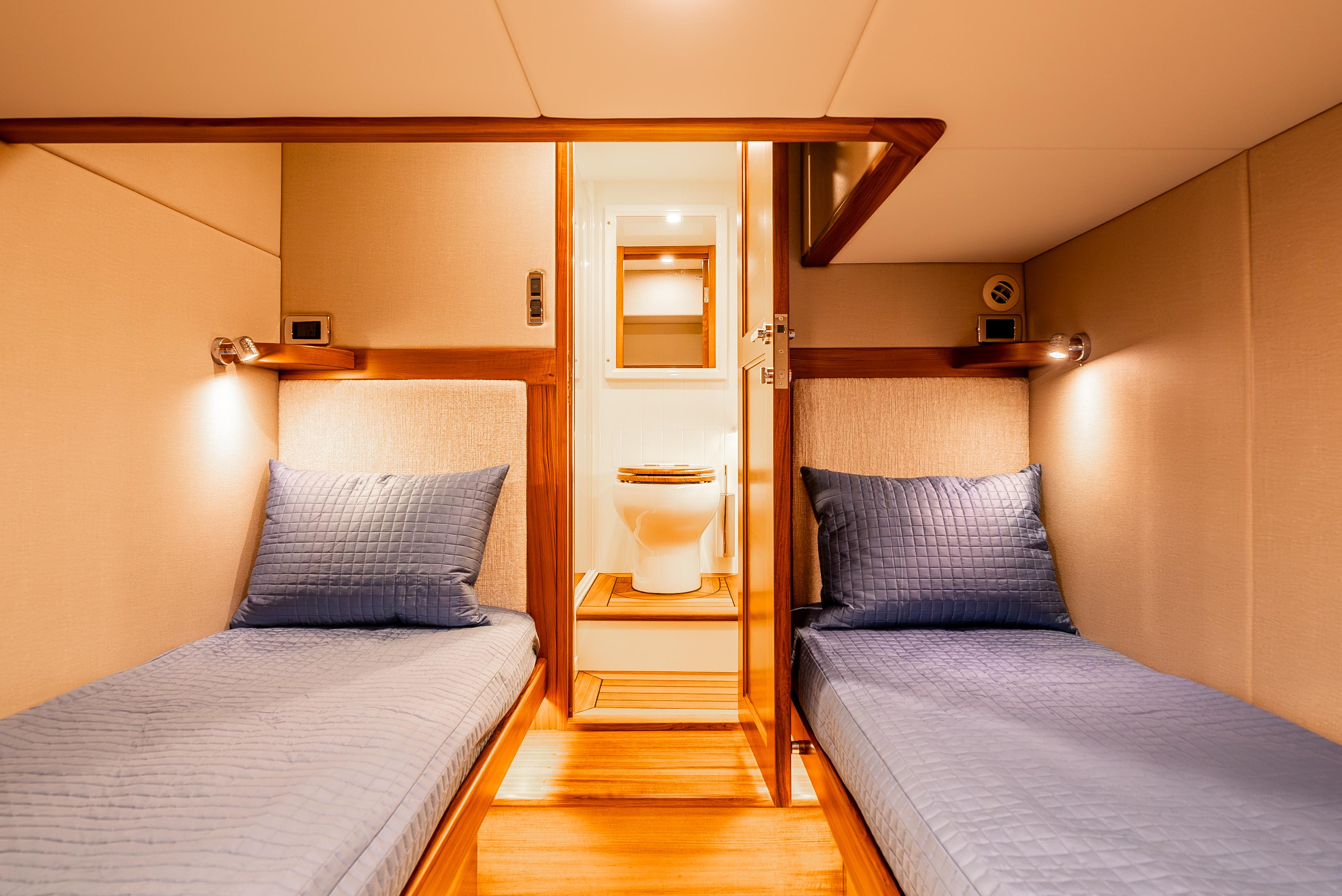

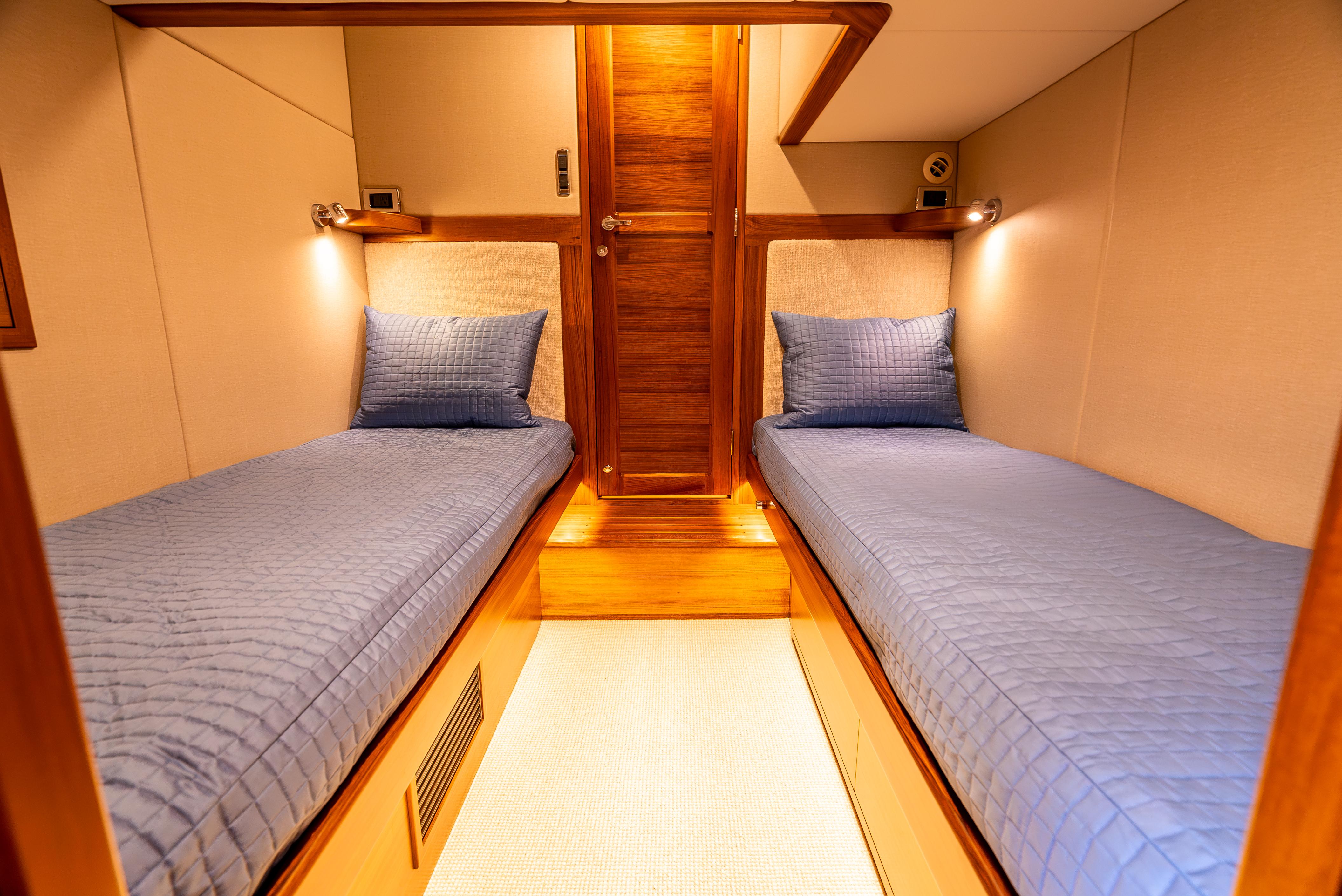

Twin beds

LEDv Overhead lighting

Head

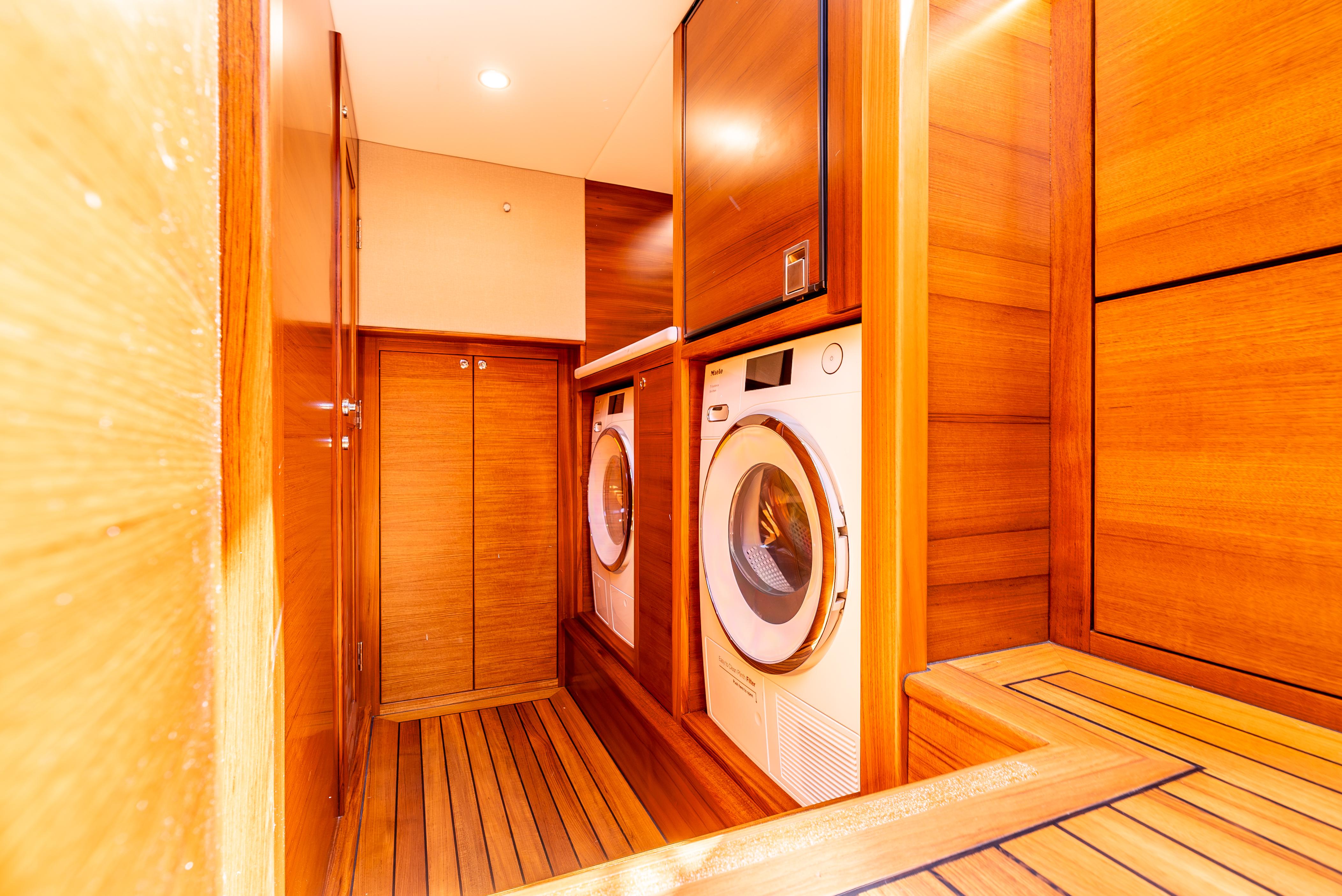

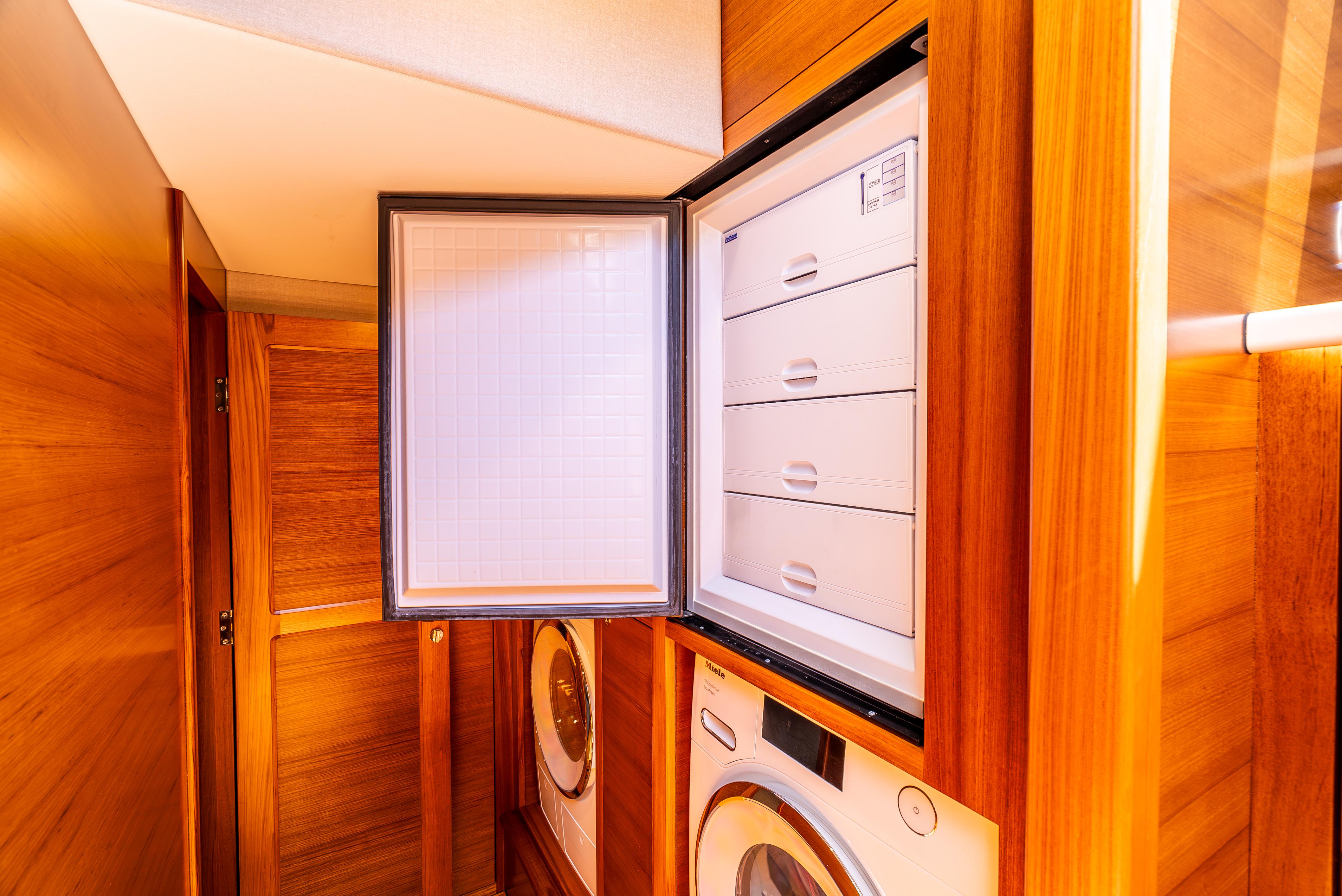

Mielw WRX860WCS Washer

Miele TXR860WP Eco & Steam Dryer

Bow Rider w/seat cushions , teak deck

Cockpit Fixed Stainless Sun Cover

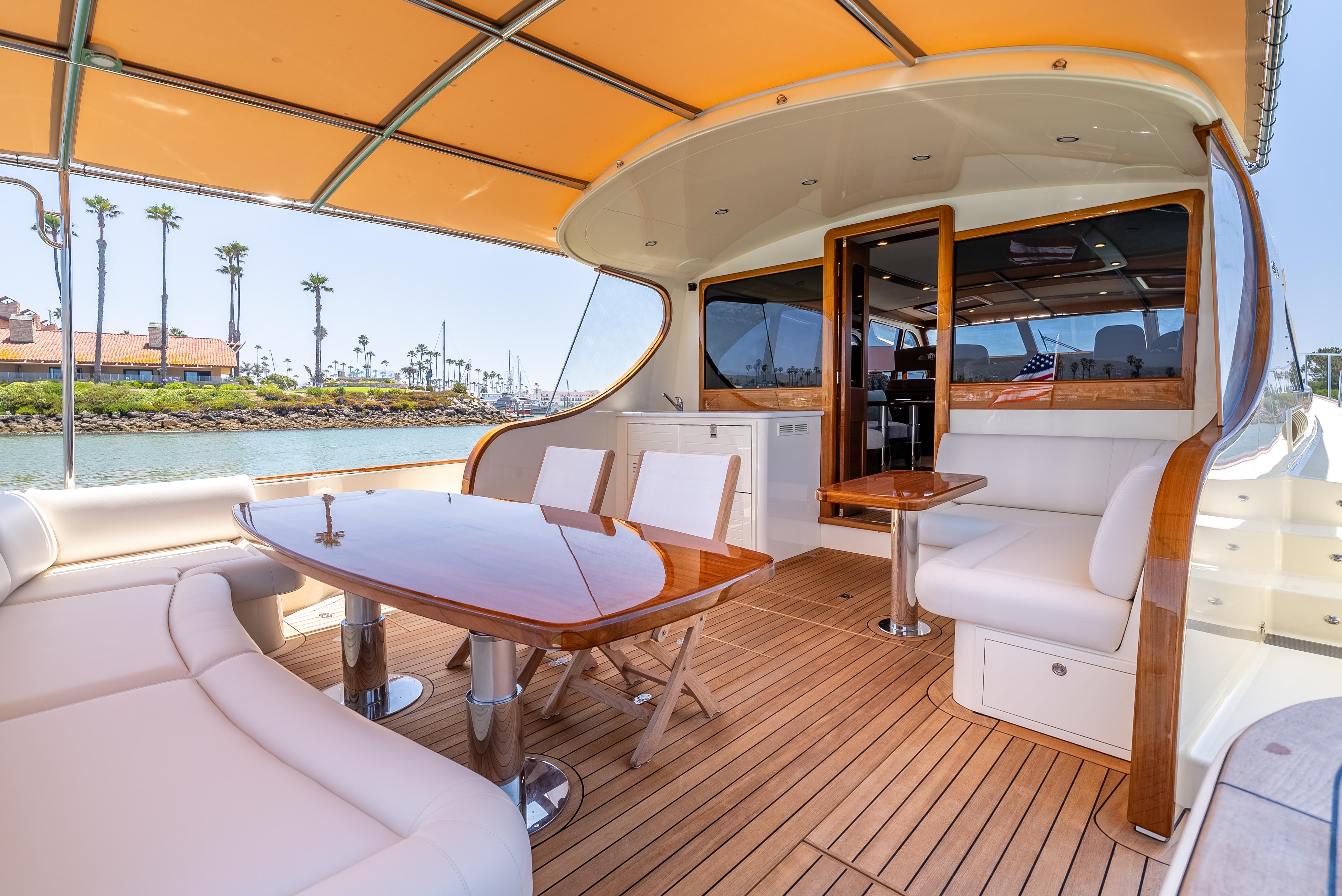

Cockpit Starboard facing L-Settee with fixed table

Custom L-Shaped transome settee

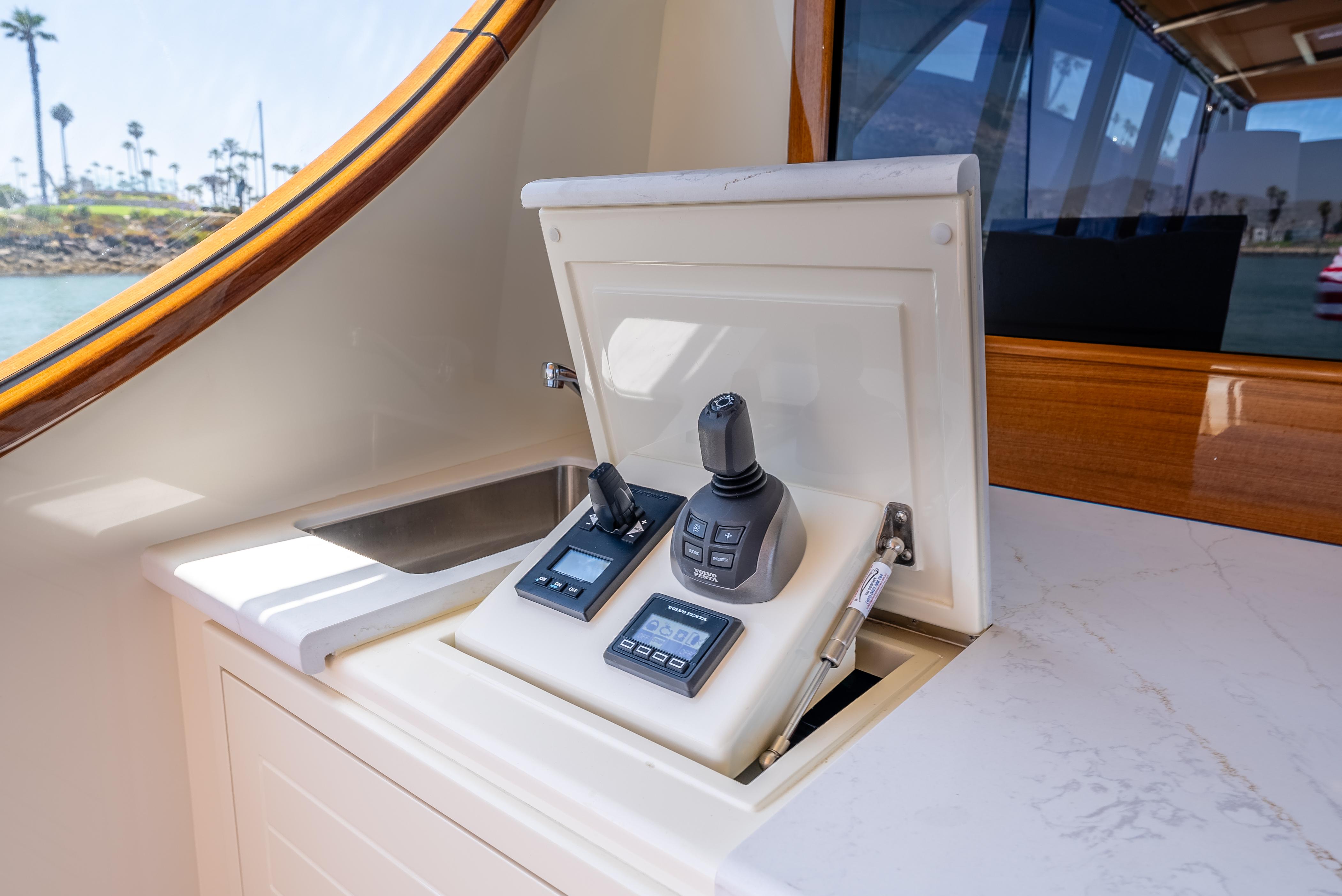

Port Cockpit Locker / Wetbar with SS Sink,Flip up Docking Station, Drawer Refrigerator and Ice maker

(2) Gemlux Swivel Rod Holders
